51618 Class 127 Driving Motor Brake Second

Home Railway

Llangollen Railway

Location History

Llangollen Railway 84-Present

Current Location

Llangollen Railway





Current Status

Operational





Current Livery

BR Multiple Unit Green (Speed Whiskers)





TRA Designation

4



Partner Vehicle(s)

56223





Owner

Llangollen Railcars Limited





Website

www.llangollenrailcars.com



Record Last Updated

10 December 2014



Preservation Modifications
Doors were locked out and footboards removed in the late 1980’s, however these were reinstated in the early 1990’s.

The 1990’s saw a corridor connection added and a connection into the saloon to allow through access in the vehicle.

Preservation Information
51618 was withdrawn in December 1983 and purchased for use by the Llangollen Railway the following year. The vehicle formed part of the line's first DMU set along with Class 105 DTCL 56456, still in its BR Blue livery. Corridor connections were added to the coach end and a connection made from the guards van to the saloon, enabling passengers to walk the length of the coach and move into the adjacent vehicle.

In 1985, the vehicle was repainted into BR Green.

During the late 1980’s, being the railway’s only operating DMU set, 51618 & 56456 saw a lot of use, and some of 51618’s doors were locked out of use and  the footboards were removed.

In 1990 the vehicle saw some restoration work to keep it in good condition.

During the early 1990’s the out-of-use doors and footboards were reinstated, and in 1994 other DMUs started to join the operational fleet, lessening the workload on 51618 and allowing it to settle down to a more sustainable pattern of running.

In 1997 the vehicle was refurbished again, with one of the rare Rolls Royce engines (No2 engine) being replaced with a reconditioned example.

In 2000 the seating was reupholstered.

In 2007 the No1 engine which wasn’t replaced ten years earlier was reconditioned. The rear final drive was also swapped following its failure in traffic.

In 2009 the vehicle was repainted into the lighter (earlier) shade of BR Green, having operated in standard BR Green for nearly 25 years. This was to match its new partner, Class 108 DTCL 56223, after 56456 was withdrawn for a full rebuild.

In 2010 the external refresh was completed with a roof repaint, which included the cab roof dome which was painted white. During this period the roof was extensively repaired, particularly around the gutter and cab areas.

New elbows were fitted to one side of the exhaust system and both sides had new exhaust stacks made during 2011. This was in response to 51618 developing several exhaust leaks over the past few years.

2012 saw 51618 receive a replacement throttle cable, heater, and a brand new air and axle panel fitted inside the cab.

Heavier mainenance in 2013 included a vacuum reservoir tank change, due to the original having suffered a crack which was causing vacuum leaks. Some areas of the guards van were repanelled having become careworn. A new windscreen wiper and alternator were also fitted. A spare bogie was also removed from store with work started to overhaul it as a replacement for an example which had become very worn on 51618.

During 2014 work was completed on improving the look of the wooden parts of the interior, involving rubbing down and then revarnishing all the individual window surrounds and door pieces. Loose panels were also been resecured inside. June saw the roof repainted, having not been so treated for four years. The replacement bogie also reached an advanced stage, with the vacuum cylinder being refitted following refurbishment and the brake gear being reassembled.

Future Plans
To maintain in service alongside 56223.

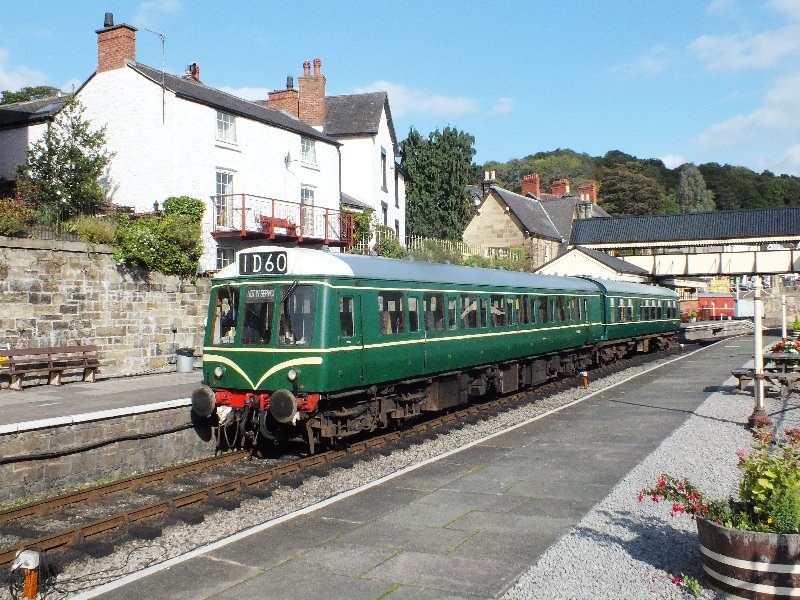

M51618/M56223 during a driver experience trip at Llangollen, 2/10/14. Chris Moxon

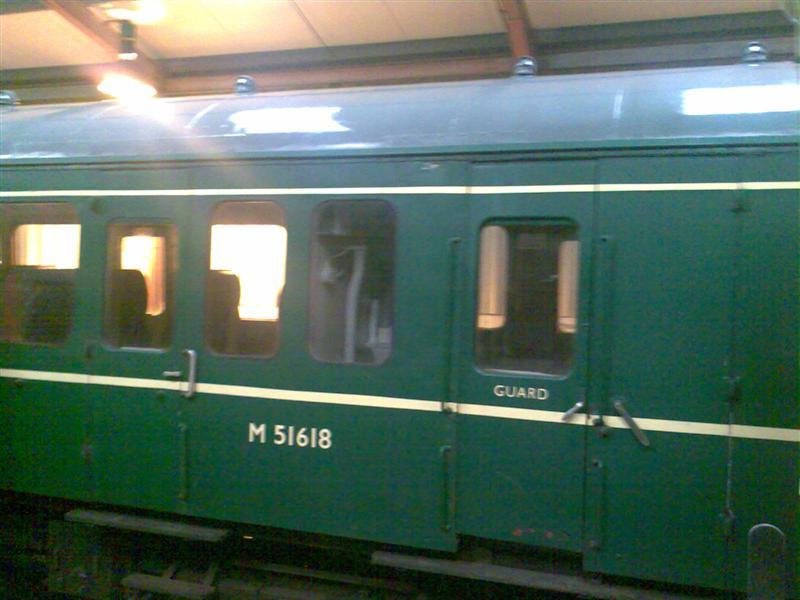

M51618 having a roof repaint, 9/6/14.Llangollen Railcar Group

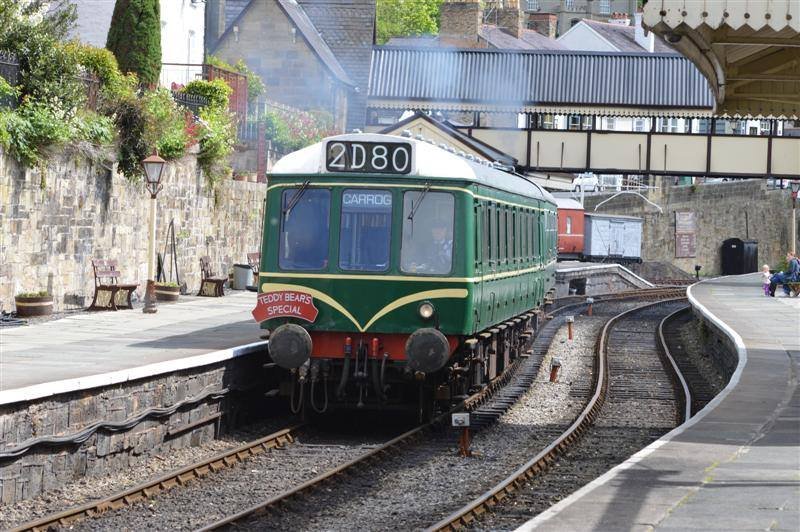

M51618/M56223 at llangollen during the Teddy Bear's Picnic event, 11/5/14.Llangollen Railcar Group

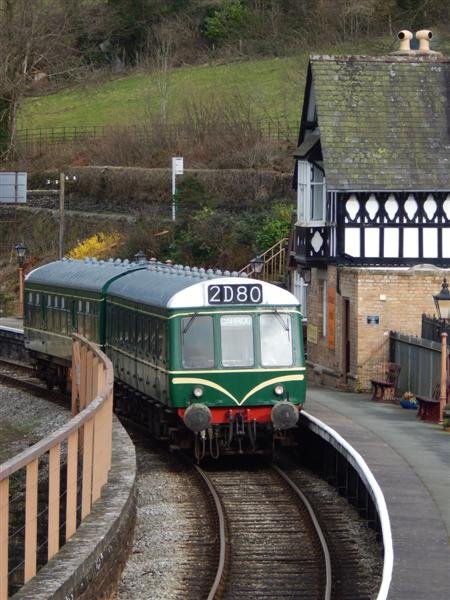

M51618/M56223 call at Berwyn, 24/3/14.Llangollen Railcar Group

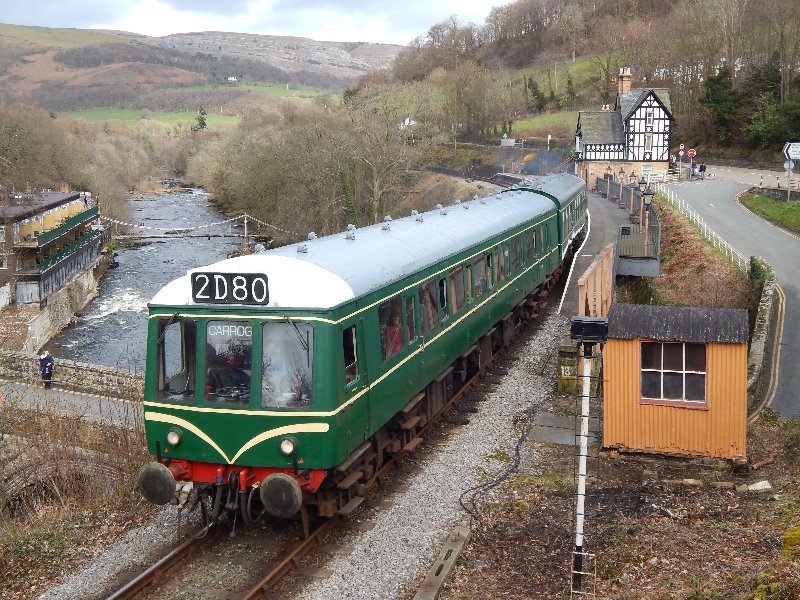

M51618/M56223 depart Berwyn, 22/3/14. Peter Dickinson

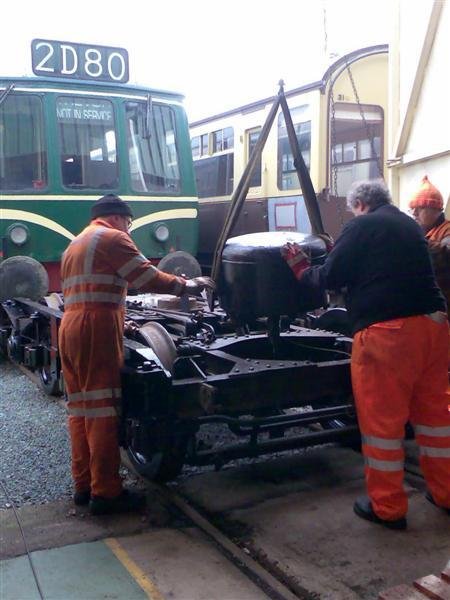

The replacement bogie receives an overhauled vacuum cylinder, 3/2/14. Llangollen Railcar Group

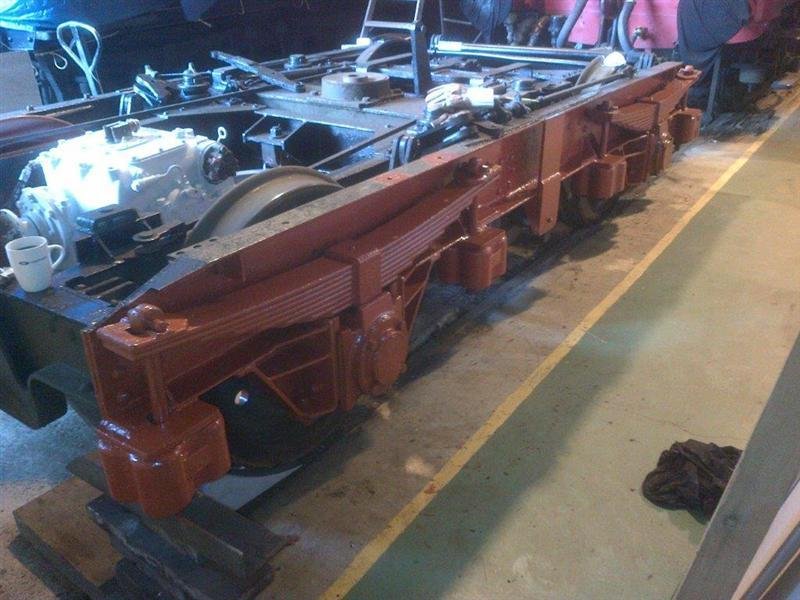

The replacement bogie during repainting, 27/1/14. Llangollen Railcar Group

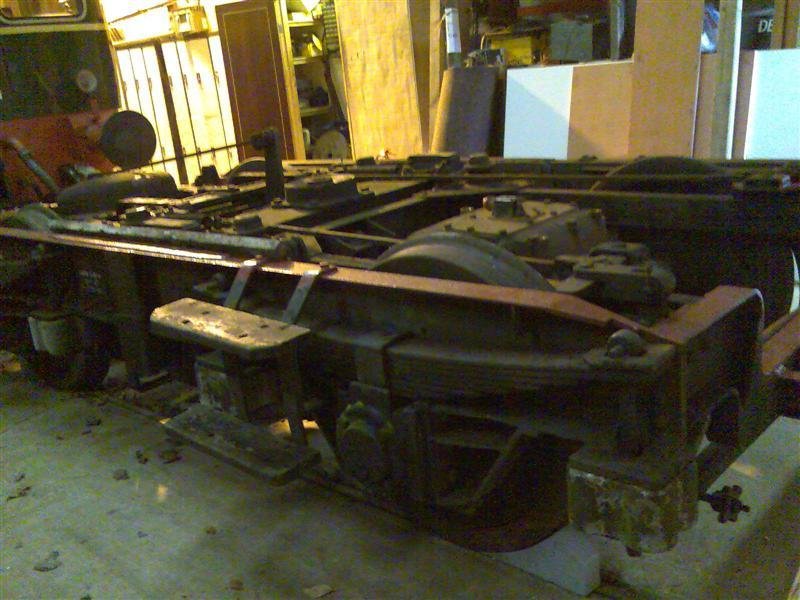

The replacement bogie being dismantled for overhaul, 9/12/13. Llangollen Railcar Group

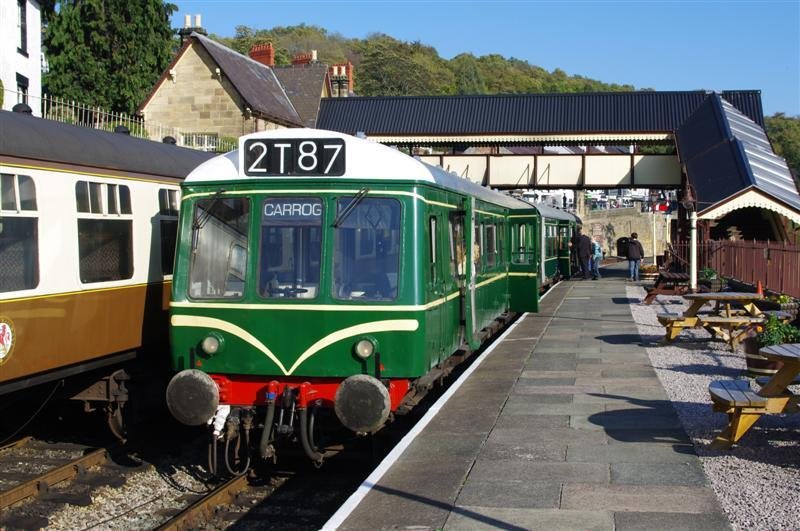

M51618/M56223 in the sunshine at Llangollen, 18/8/13. Llangollen Railcar Group

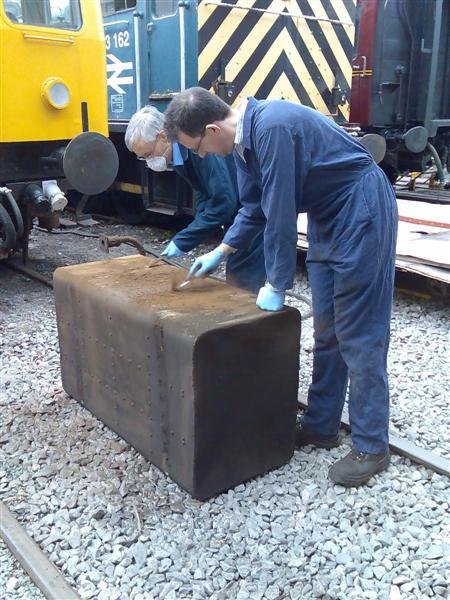

Investigating the vacuum reservoir which had been leaking, 6/5/13. Llangollen Railcar Group

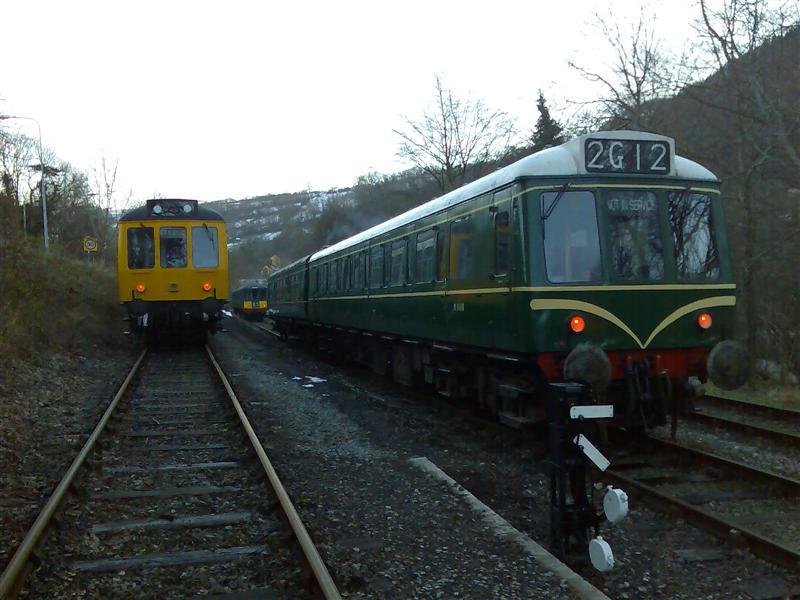

M51618/M56223 pass M51907/M54490 near Llangollen during a reshuffle at the depot, 28/1/13. Llangollen Railcar Group

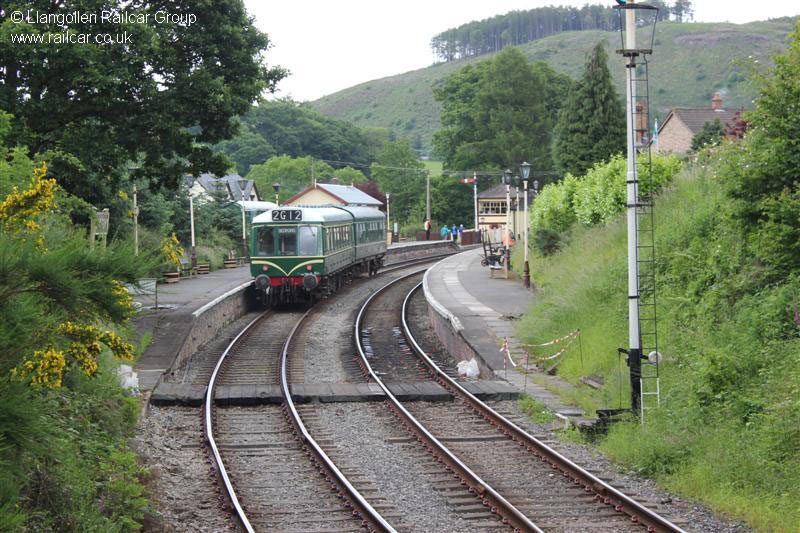

M51618 in service at Glyndyfrdwy, 9/7/12.Llangollen Railcar Group

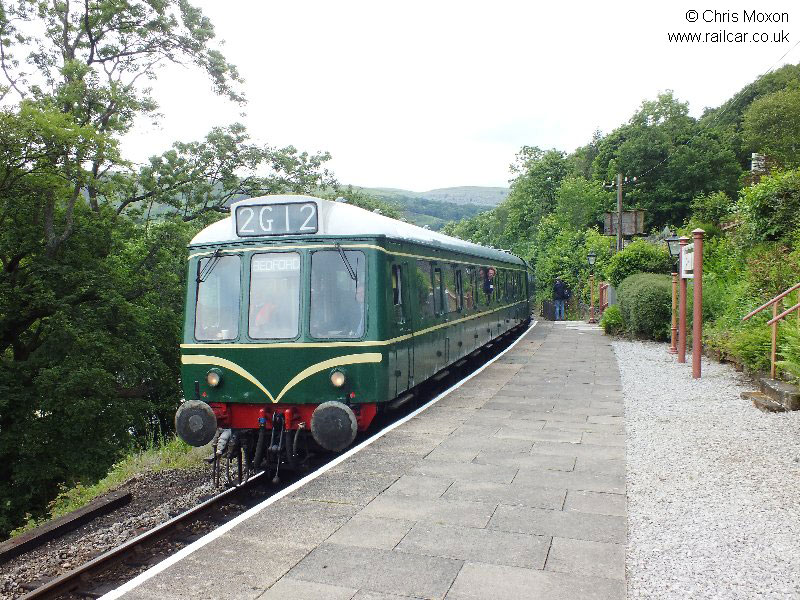

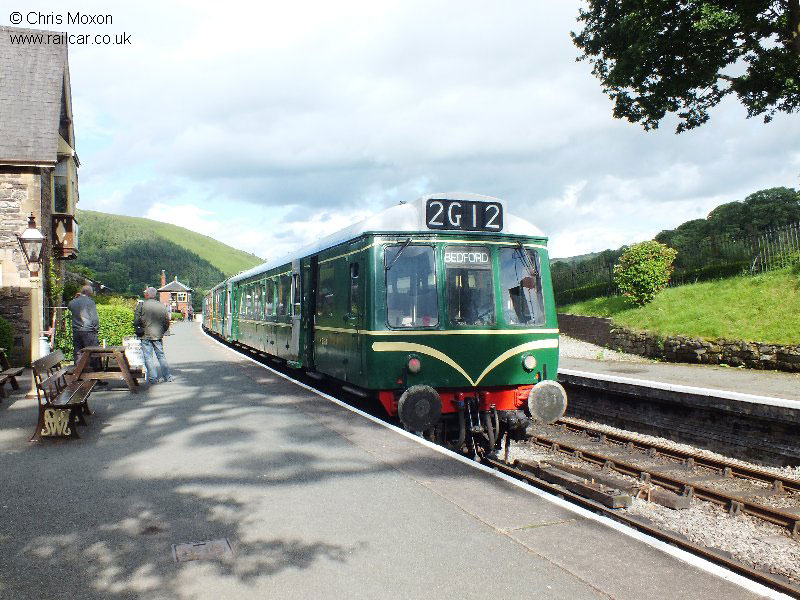

M51618 at Berwyn during the Railcar Gala, 24/6/12. Chris Moxon



M51618 at Carrog during the Railcar Gala, 24/6/12. Chris Moxon

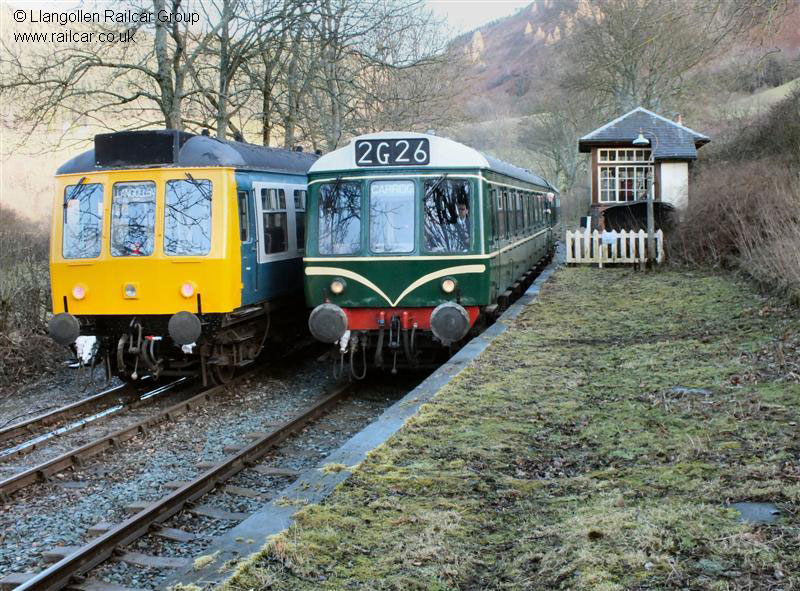

M51618 passes M51907 at Deeside, 2/2/12. Llangollen Railcar Group

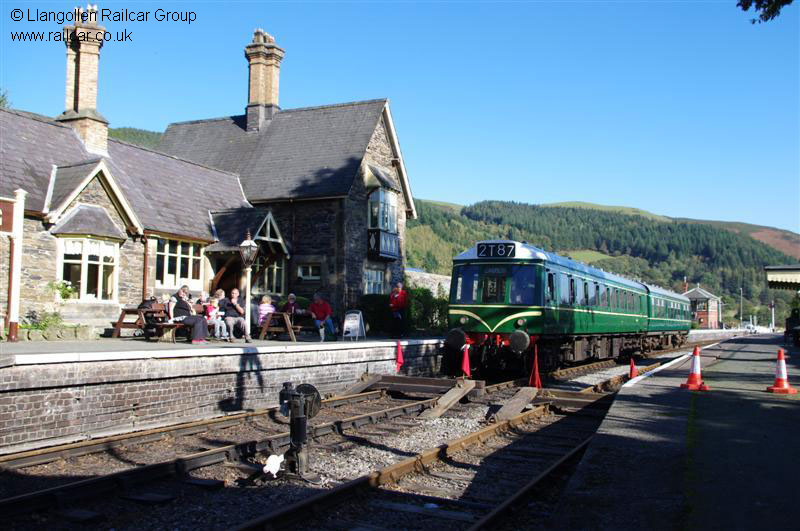

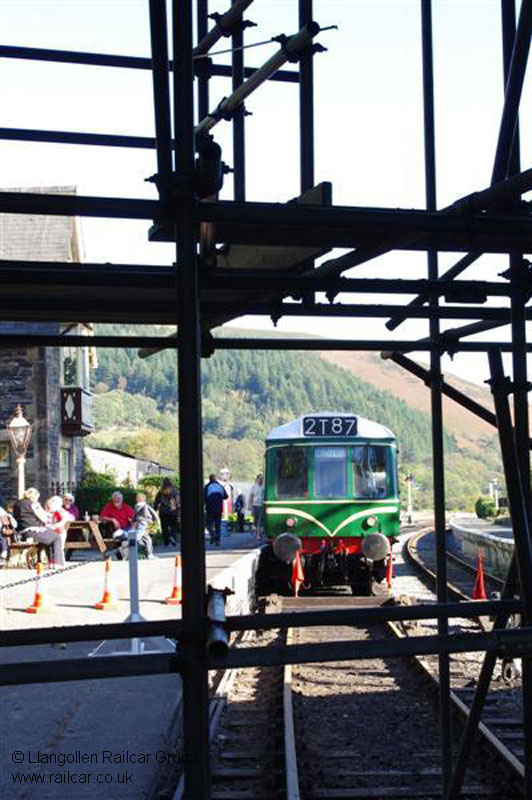

The Railway called on the DMU group to work the steam timetable on Saturday due to the lack of a crew for draw-off turns at Carrog. Currently it is necessary to have another locomotive there to pull trains back as run rounds are not possible due to scaffolding under the bridge at the end of the station. The bridge is being repaired prior to the extension to Carrog being opened next year. The 127 is seen enjoying the sunshine at Carrog on a day which saw a record 433 passenger journeys on the two-car unit, 15/10/11. Llangollen Railcar Group



The Railway called on the DMU group to work the steam timetable on Saturday due to the lack of a crew for draw-off turns at Carrog. Currently it is necessary to have another locomotive there to pull trains back as run rounds are not possible due to scaffolding under the bridge at the end of the station. The bridge is being repaired prior to the extension to Carrog being opened next year. The 127 is seen enjoying the sunshine at Carrog on a day which saw a record 433 passenger journeys on the two-car unit, 15/10/11. Llangollen Railcar Group

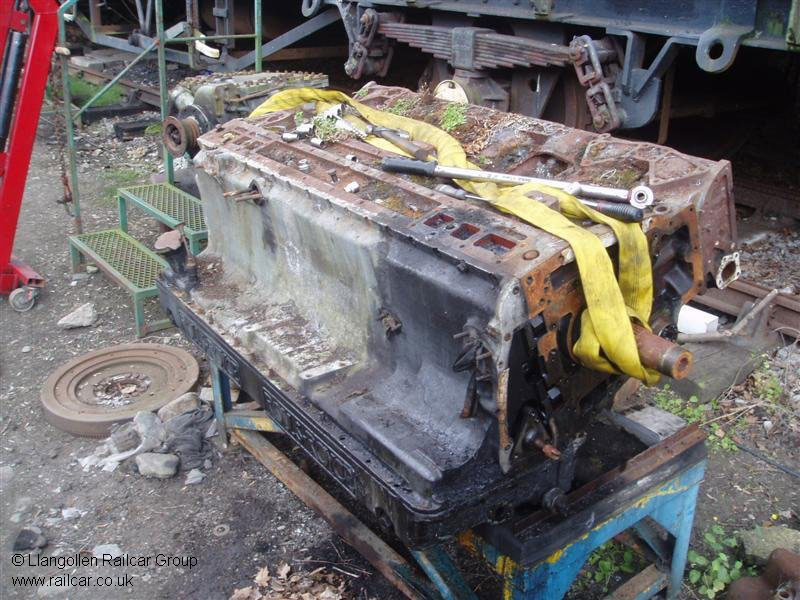

The remains of an engine which originally came out of 51618. The engine put a "leg out of bed" and damaged the block but there is still much which can be re-used, 3/8/11. Llangollen Railcar Group

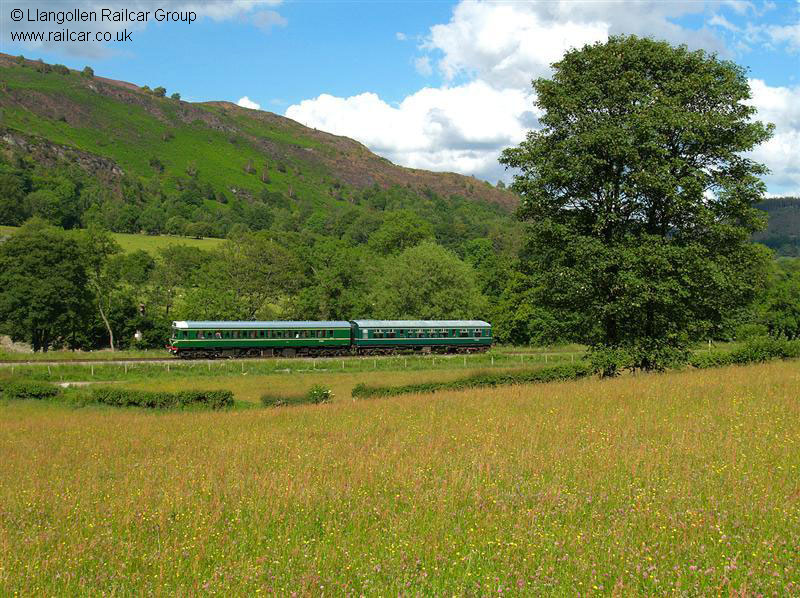

In the countryside near Garth-y-dwr the class 127 power car, with its Rolls-Royce engines, hauls class 108 trailer 56223. The roof of the class 127 had recently been reliveried to its original condition, 26/6/11. Llangollen Railcar Group

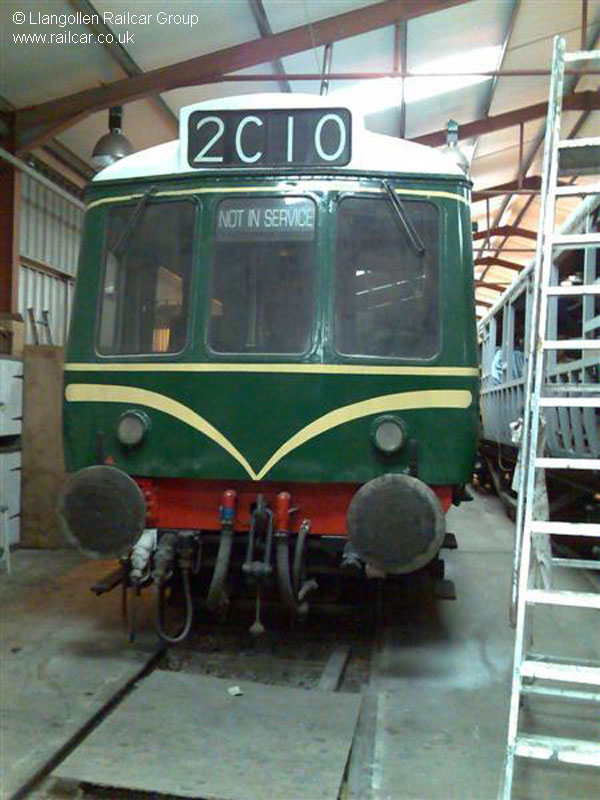

The headcode box on the 127 has been rubbed down and given a final gell coat of white and the gutters repainted as they'd been damaged when sanding the roof, 13/6/11. Llangollen Railcar Group

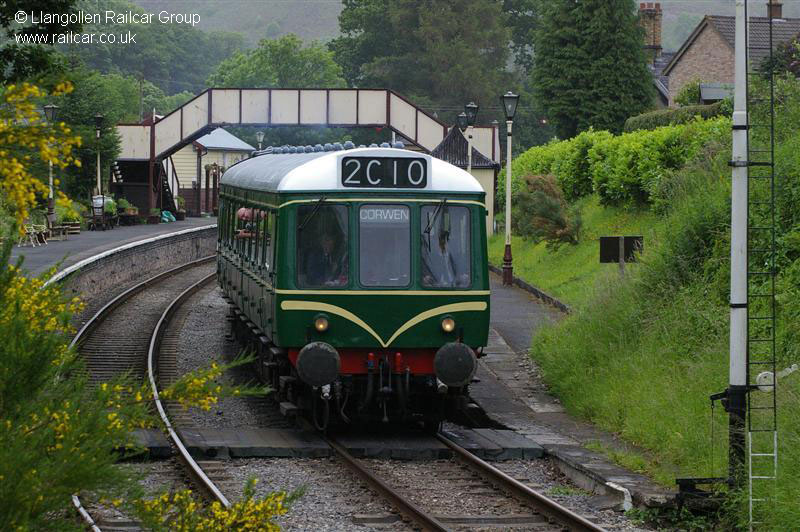

In 2009 51618 was repainted in Medium Brunswick Green livery. The relivery was completed in 2010 when the roof was fully repainted in grey gloss and the white headcode box was reinstated. During this period the roof was extensively repaired, particularly around the gutter and cab areas. The vehicle is seen departing Glyndyfrdwy in 2010. Llangollen Railcar Group



M51618, running for only the second time with class 108 trailer 56223 calls during the Railcar Gala, June 2010. Llangollen Railcar Group

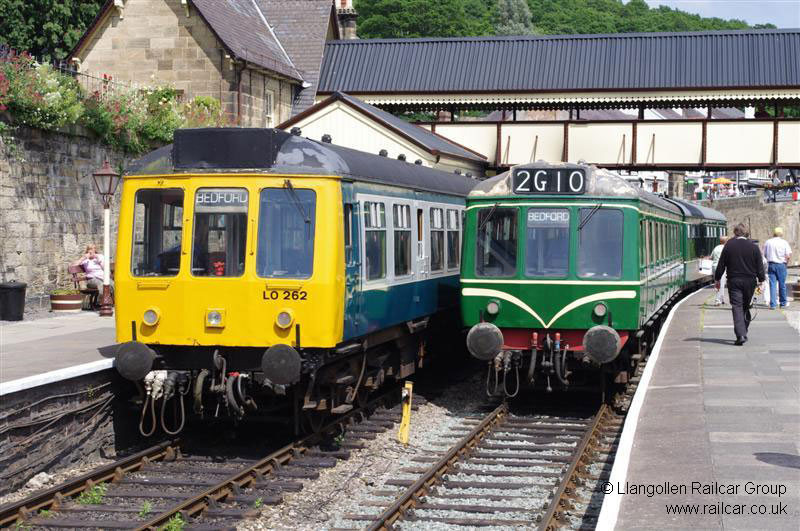

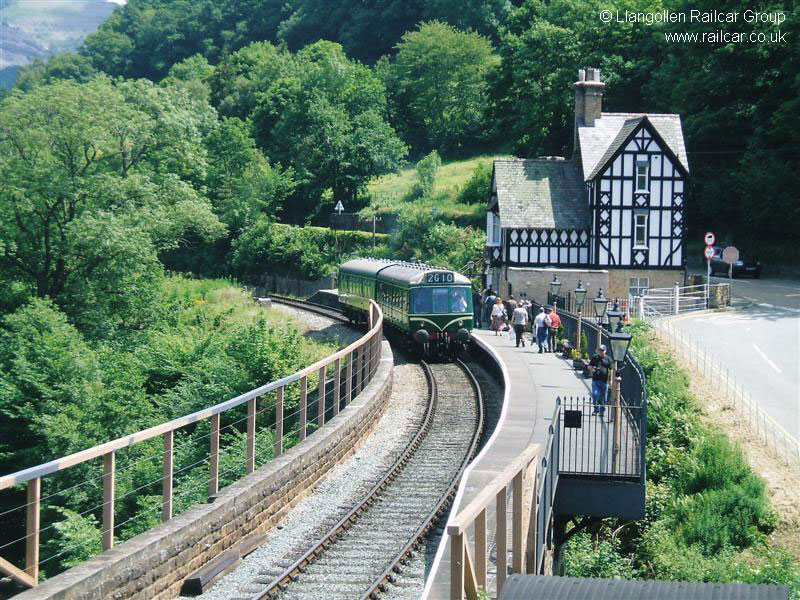

Two Derby cars at Llangollen, on the left class 108 vehicle 51907 and on the right class 127 51618. The 108 has Leyland engines and the 127 has Rolls Royce, June 2010. Llangollen Railcar Group

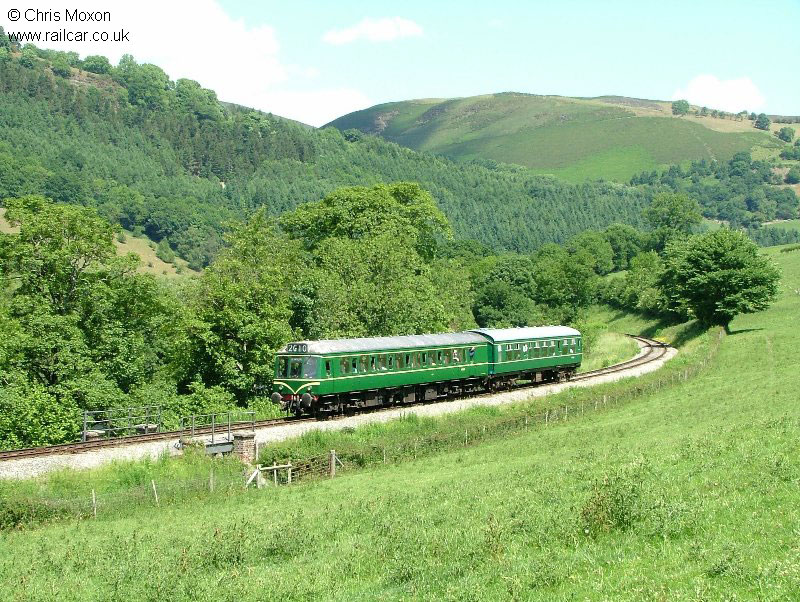

M51618 & M56223 approach Glyndyfrdwy during the Railcar Gala, 26/6/10. Chris Moxon



The 2009 season was the last that M51618 was to be paired with the class 105 trailer for some time as the class 105 is to be rebuilt. The pair are seen climbing up the riverbank below Berwyn station, 2009. Llangollen Railcar Group

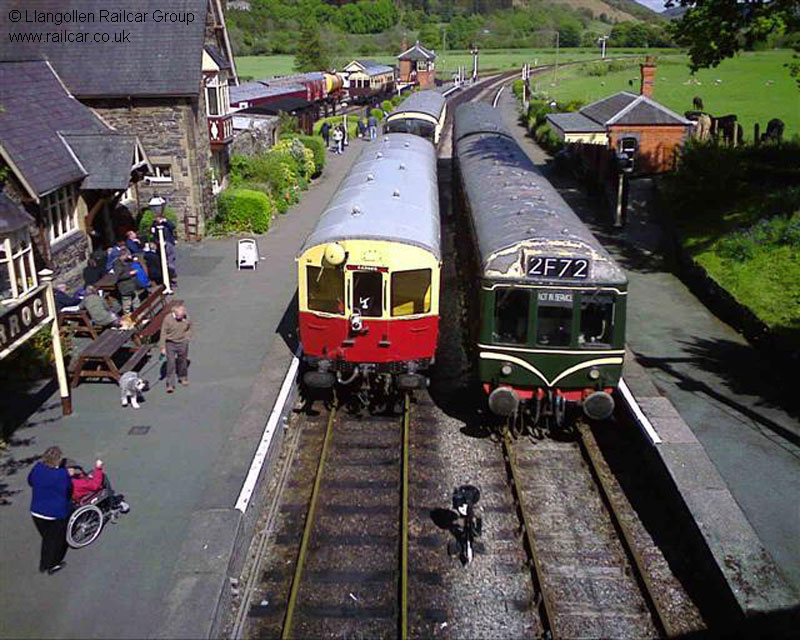

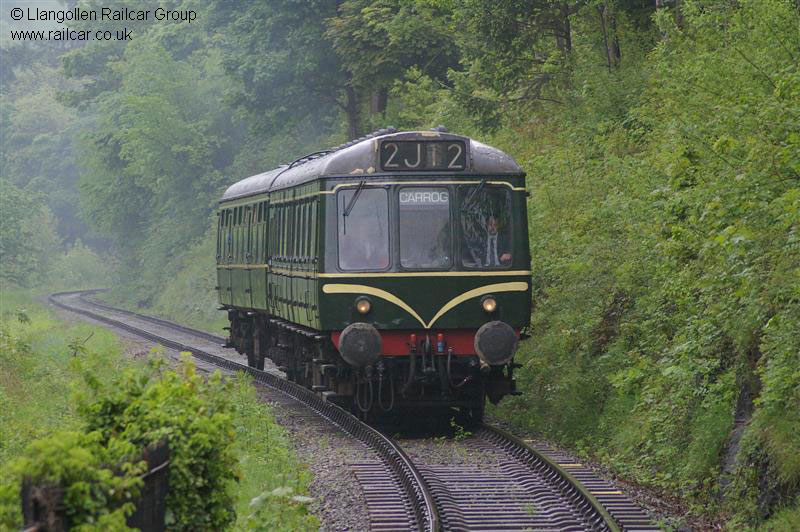

A comparison in front ends. The steam autocoach is seen at Carrog in the company of the class 127 Derby suburban unit, May 2009. Llangollen Railcar Group

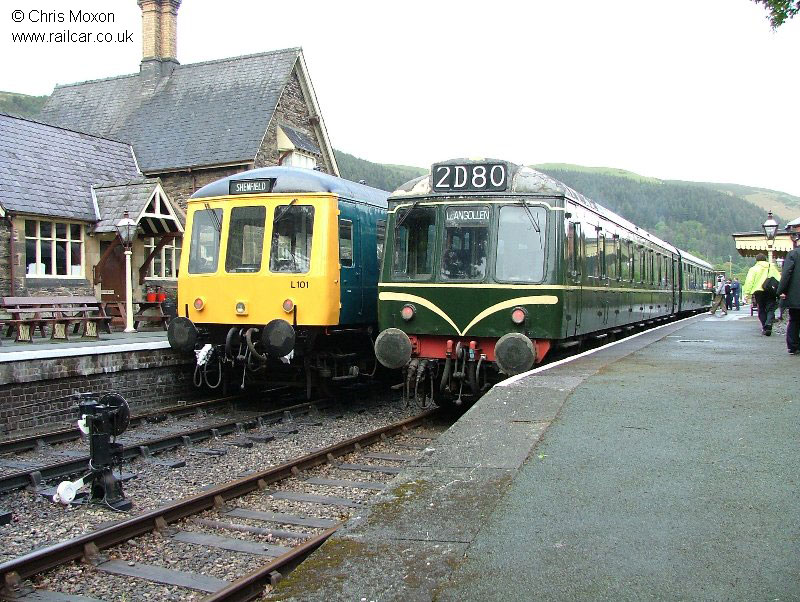

M51618 & M56456 alongside visiting Class 122 W55001 at Carrog during the Railcar Gala, 17/5/09. Chris Moxon

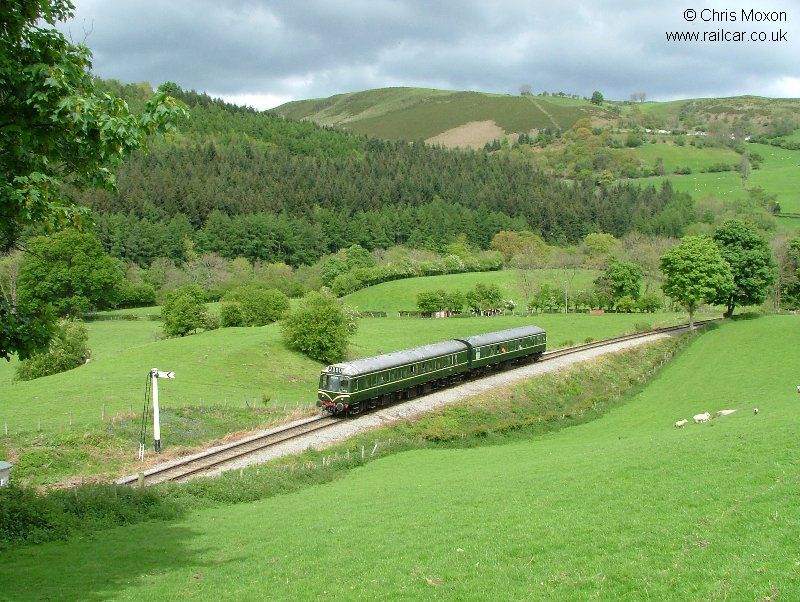

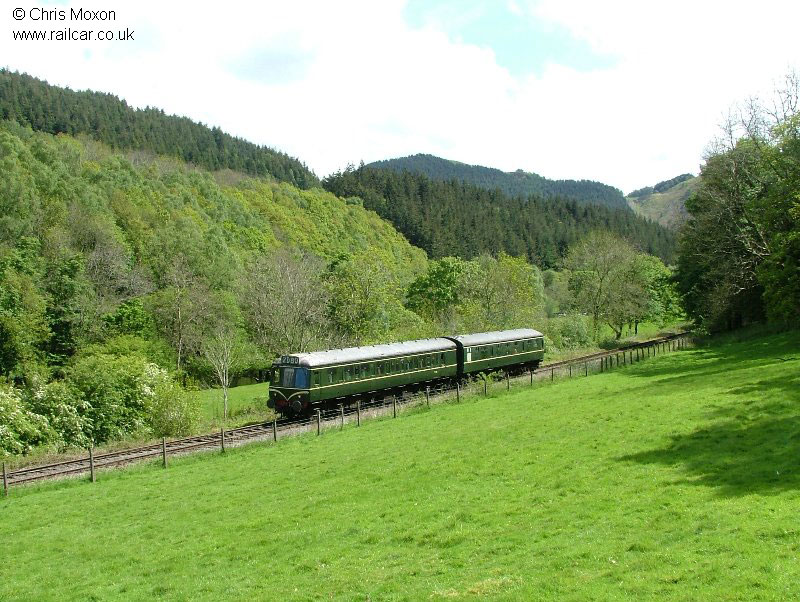

M51618 & M56456 pass Garthydwr during the Railcar Gala, 17/5/09. Chris Moxon



M51618 & M56456 pass Garthydwr during the Railcar Gala, 17/5/09. Chris Moxon

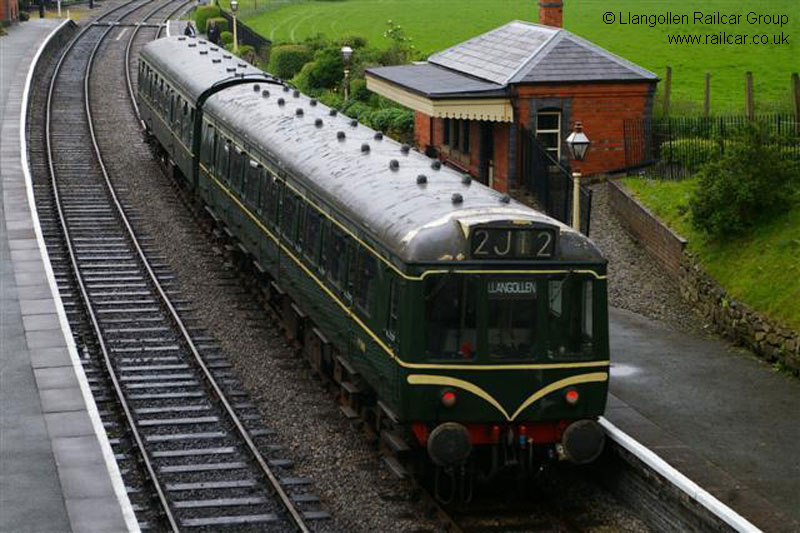

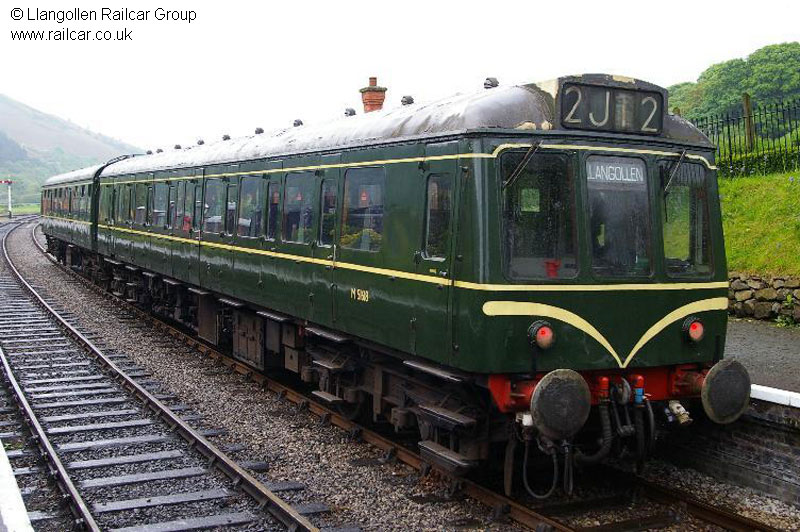

M51618 is seen in service at Carrog, June 2008.Llangollen Railcar Group



M51618 is seen in service at Carrog, June 2008.Llangollen Railcar Group

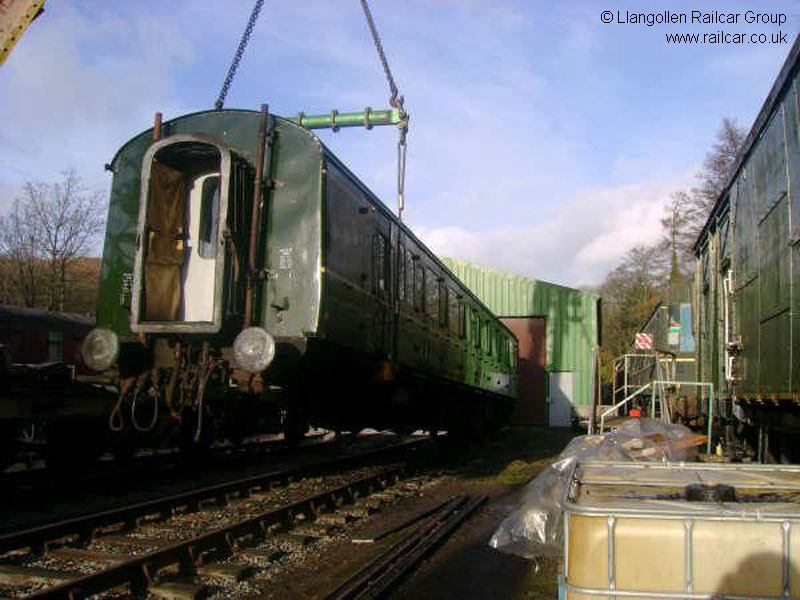

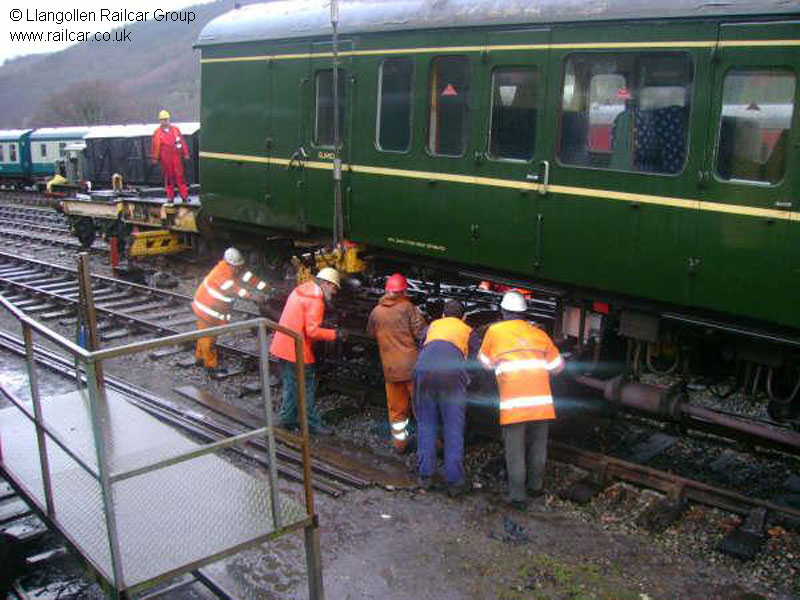

It is amazing how many people think that preserving a diesel train is a matter of getting in it and turning a key! The first job in changing 51618's rear final drive was to remove the bogie, onto which the gearbox is fixed - this involved using a 50 ton crane to lift the rear of the unit so that the bogie could be disconnected and rolled out, December 2007. Llangollen Railcar Group

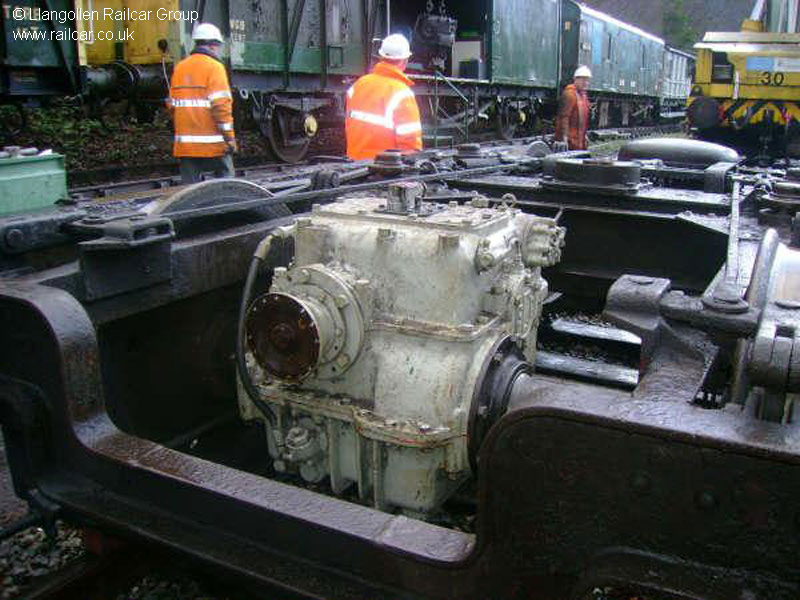

The replacement final drive gearbox. Llangollen Railcars were very lucky to be able to locate a reconditioned unit through the Midland Railway DMU Group, December 2007. Llangollen Railcar Group



The completed bogie being rolled back into position under 51618 so that the crane can lower the body back down onto the wheels, December 2007. Llangollen Railcar Group

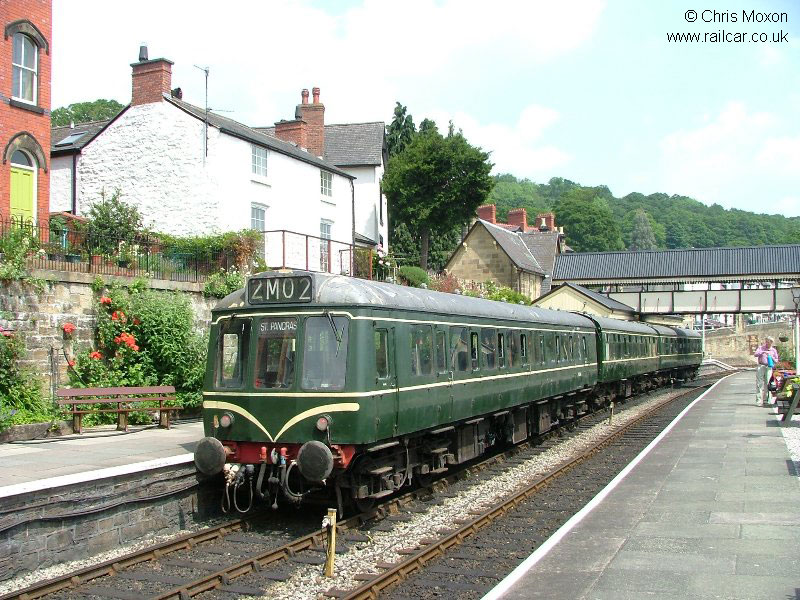

M51618, M56456 & M50528 stand at Llangollen during the Railcar Gala, 9/6/07. Chris Moxon

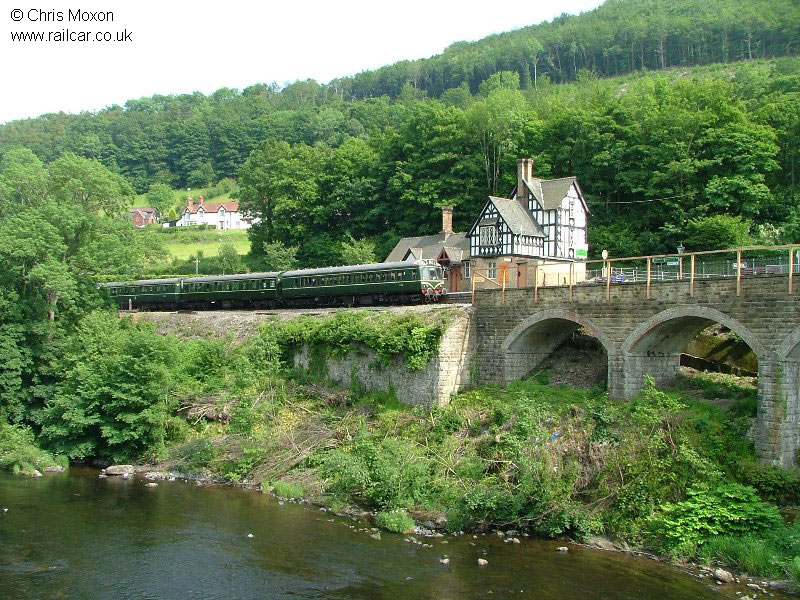

M51618, M56456 & M50528 call at Berwyn during the Railcar Gala, 9/6/07. Chris Moxon

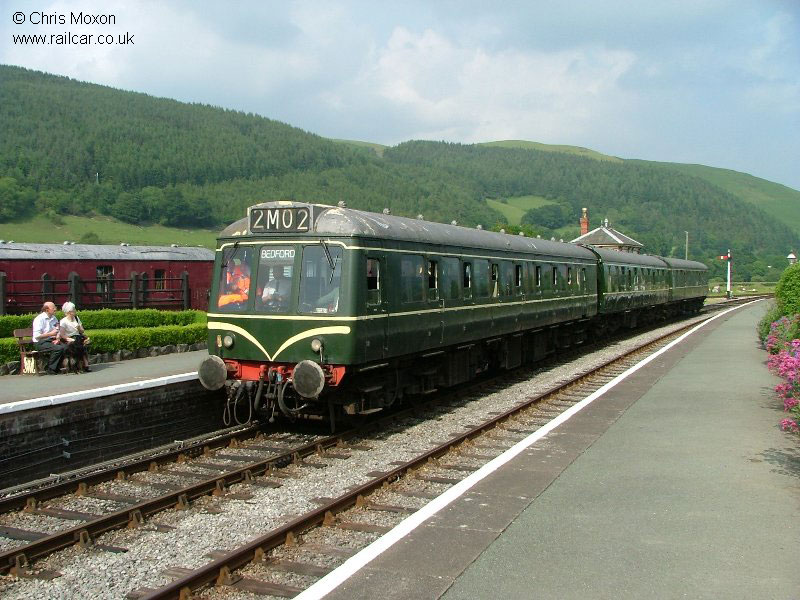

M51618, M56456 & M50528 arriving into Carrog during the Railcar Gala, 9/6/07. Chris Moxon

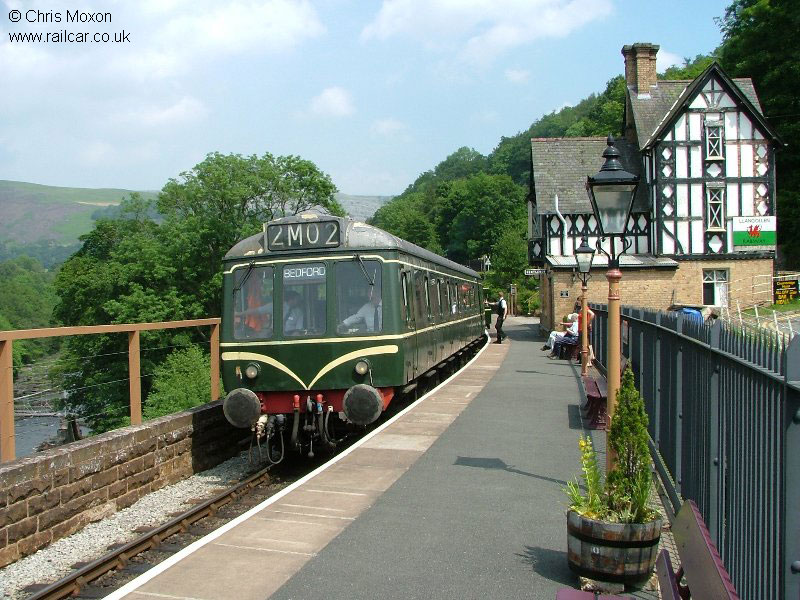

M51618, M56456 & M50528 call at Berwyn during the Railcar Gala, 9/6/07. Chris Moxon

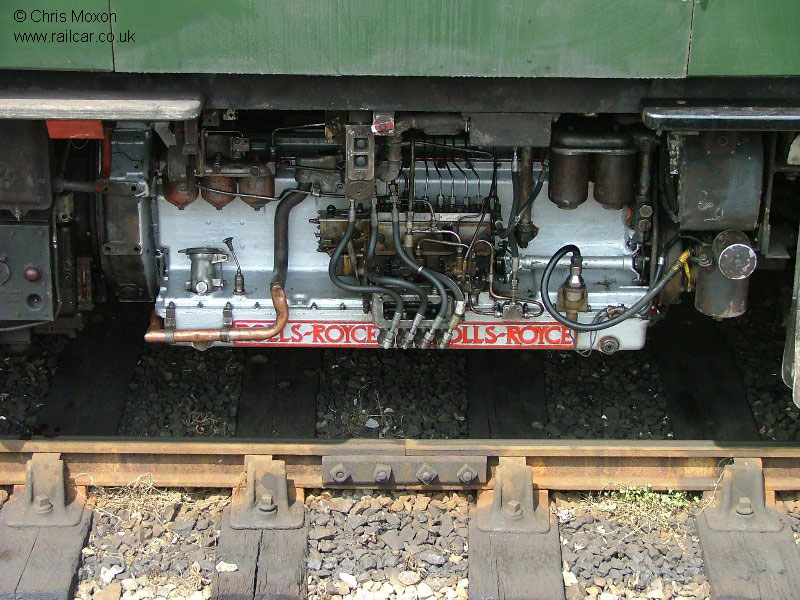

M51618's new No1 engine at Llangollen during the Railcar Gala, 9/6/07. Chris Moxon

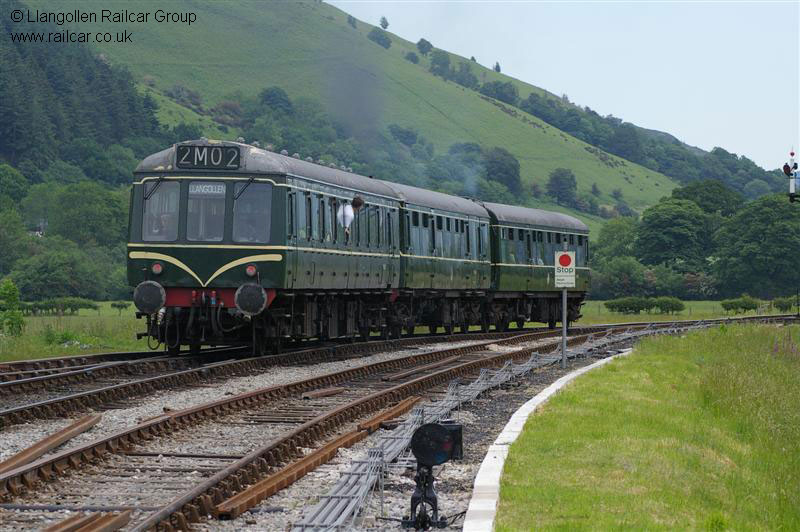

An unusual three-car set ran briefly during the 2006 season while Cravens trailer M56456 was out of traffic for maintenance. The set was made up of M51618 and Class 104 vehicles M50454 and M50528 and ,as all the cars were powered, the set had no less than 1,100hp available. It is seen here leaving Carrog, 2006. Llangollen Railcar Group

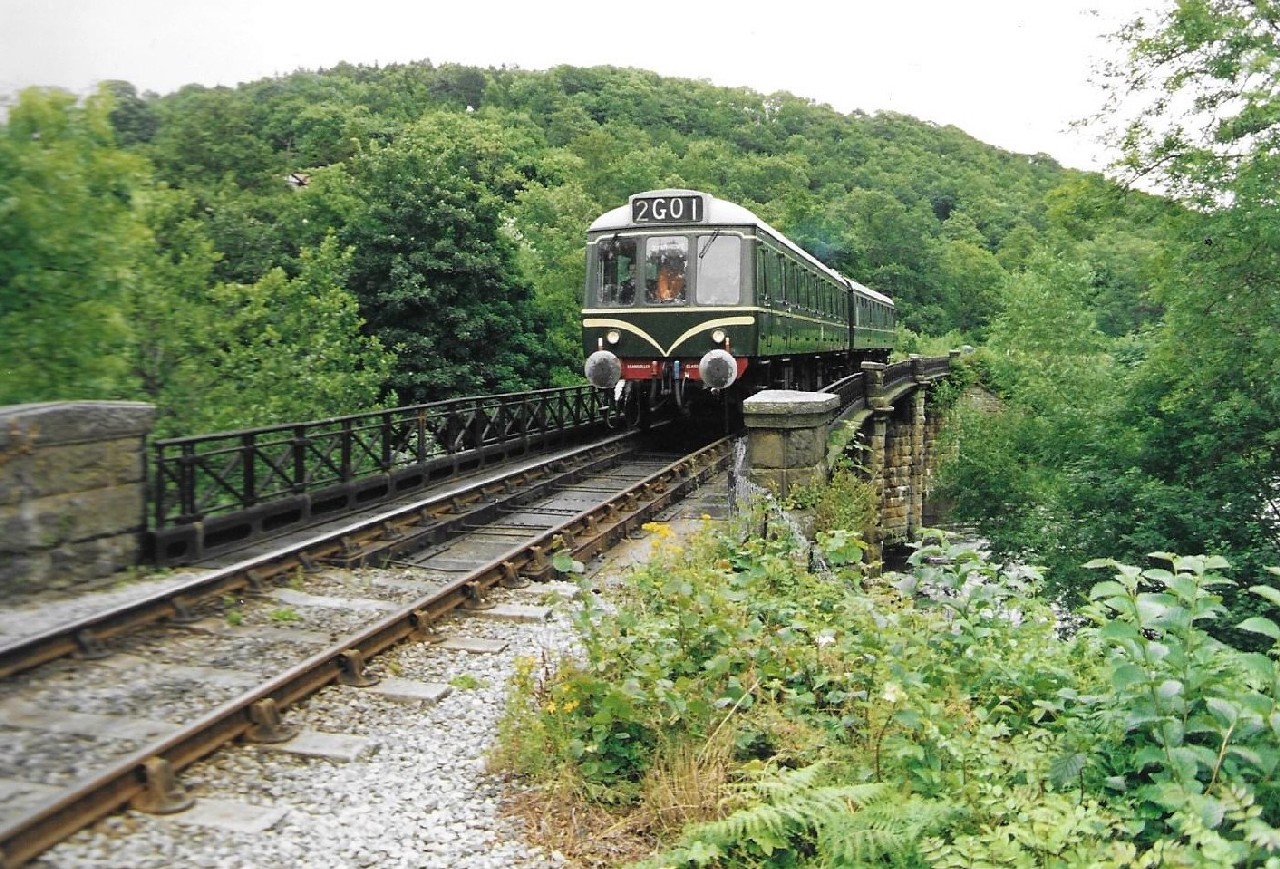

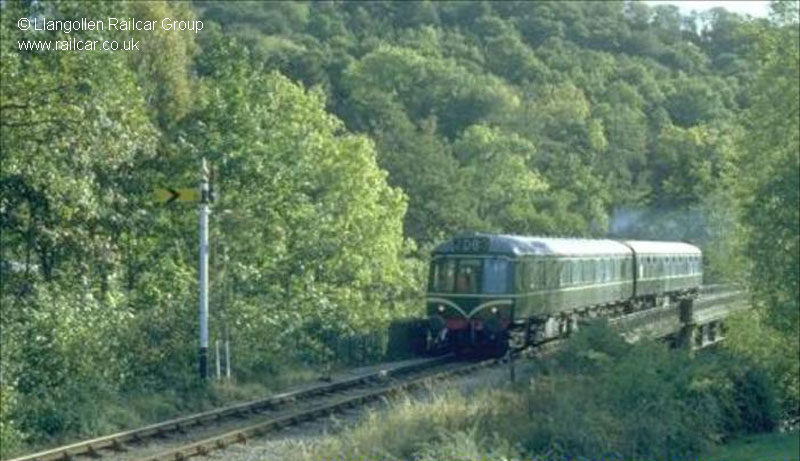

M51618, running with its Class 105 trailer, is crossing the River Dee at Pentrefelin and is beginning the 1 in 80 climb towards Berwyn station. Llangollen Railcar Group

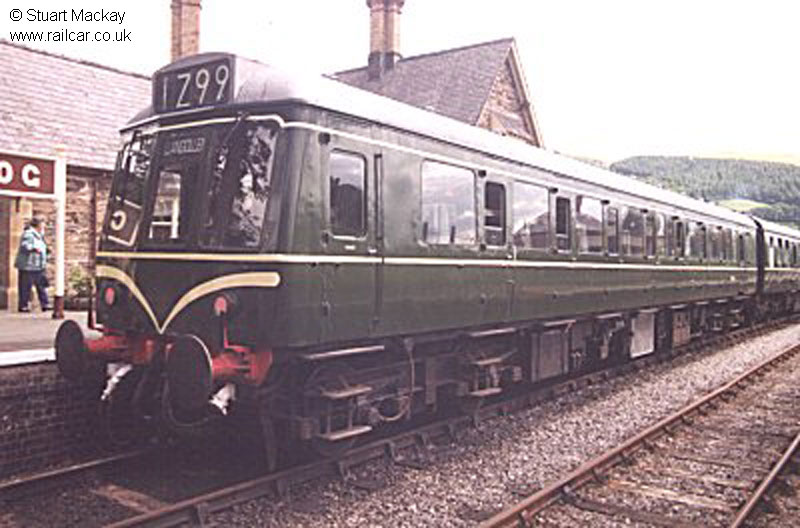

M51618 at Carrog, 28/6/97. Stuart Mackay

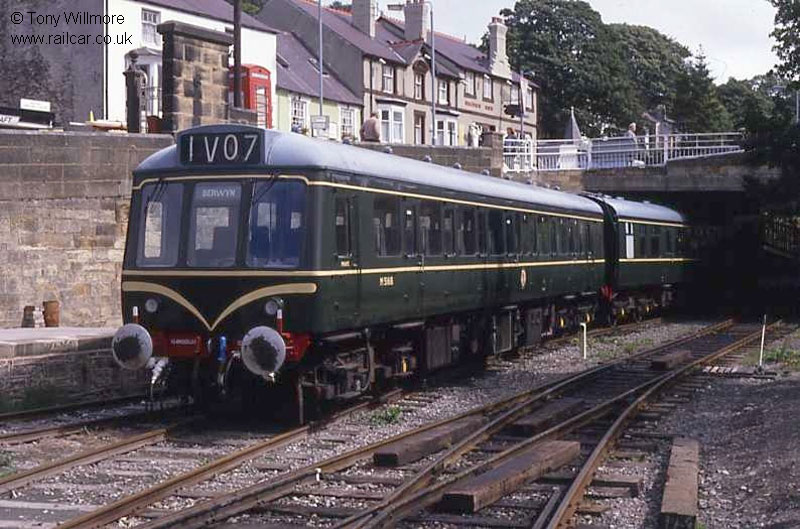

M51618 & M56456 stabled at Llangollen, 29/8/88. Tony Willmore

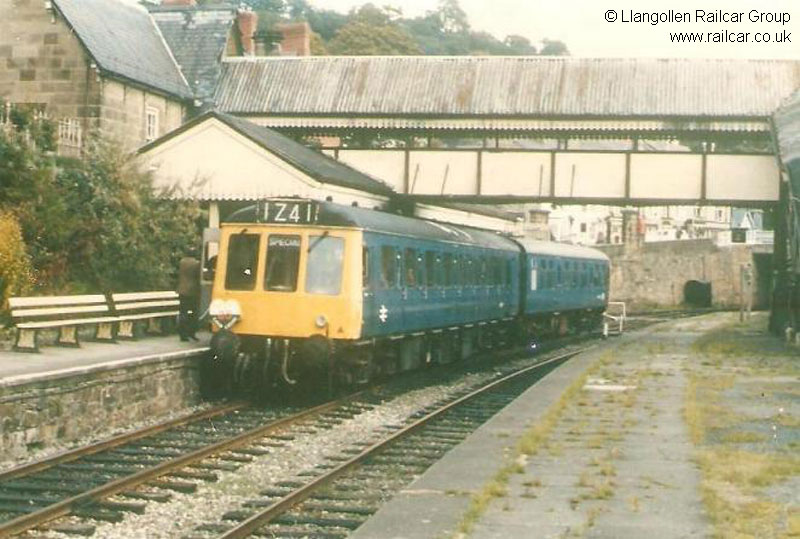

51618 & 56456 still in blue at Llangollen, working a service to Berwyn, 1985. Llangollen Railcar Group





Interior

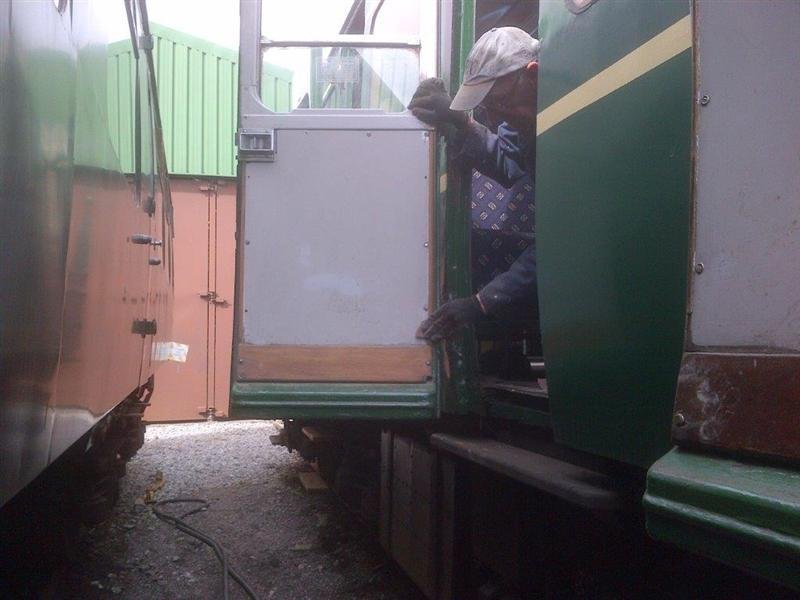

Work progressing on the inter repairing unsecure panels, 7/4/14. Llangollen Railcar Group

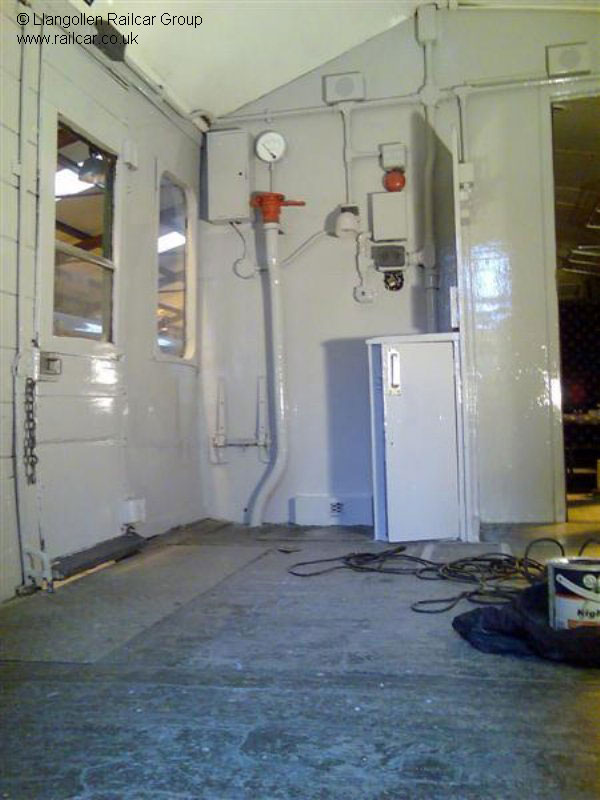

51618's guards van received some restoration work over the winter 2012/2013, seen here after the area had been repainted, 29/4/13. Llangollen Railcar Group

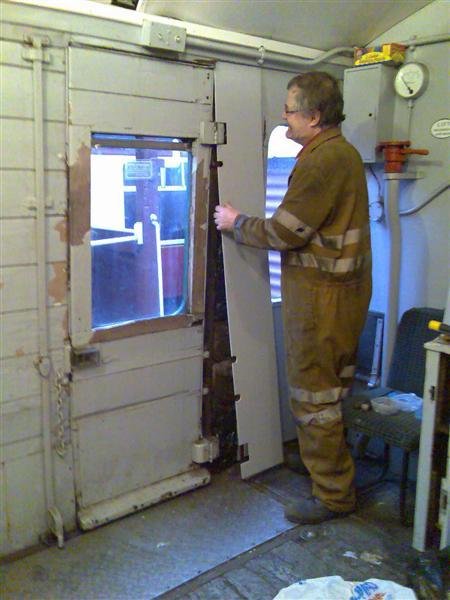

Repanelling the guards area, 7/1/13. Llangollen Railcar Group

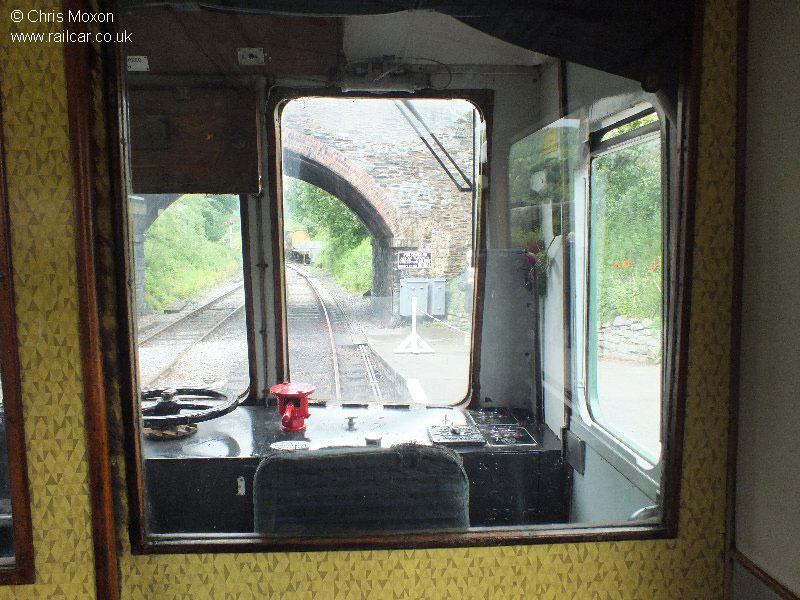

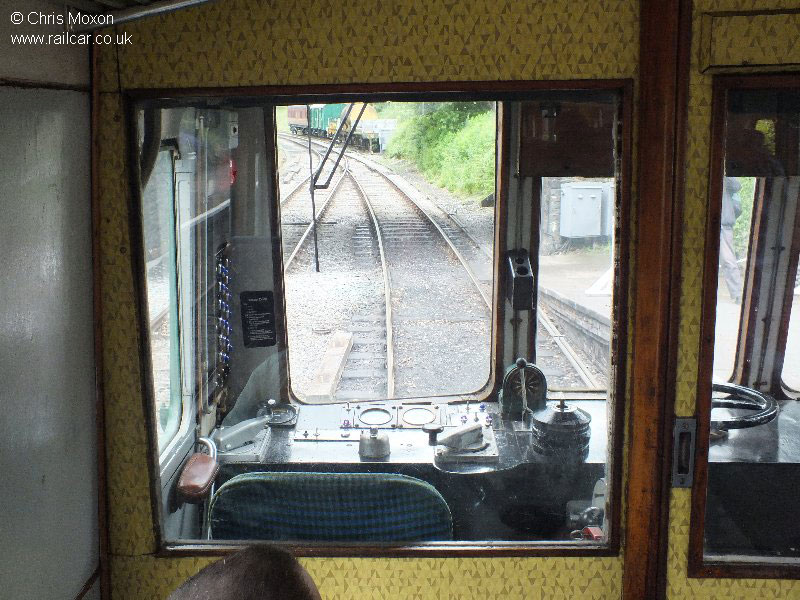

M51618's cab, driver's side, 24/6/12. Chris Moxon



M51618's cab, secondman's side, 24/6/12. Chris Moxon

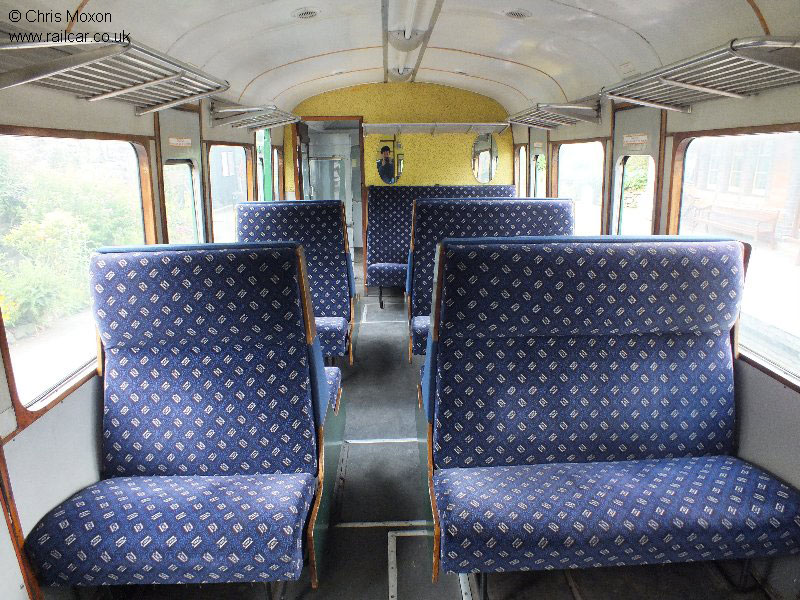

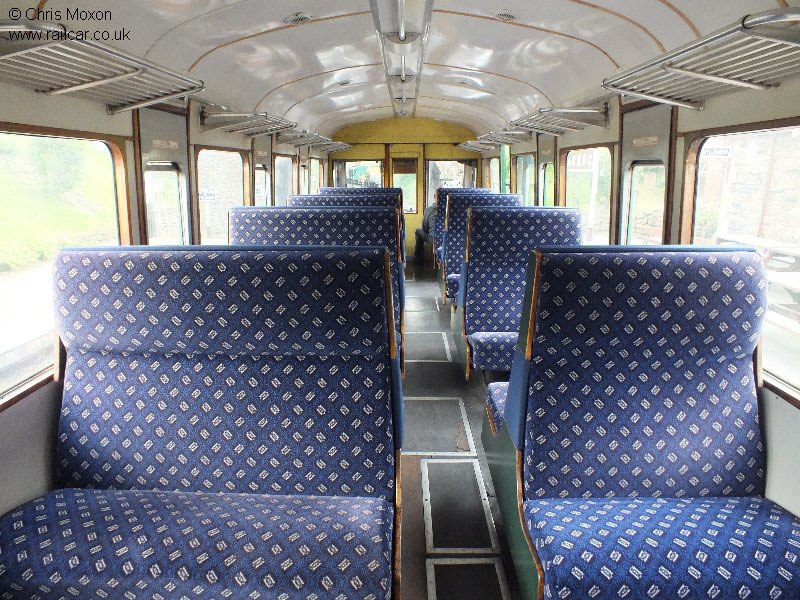

M51618's passenger saloon, 24/6/12. Chris Moxon



M51618's passenger saloon, 24/6/12. Chris Moxon

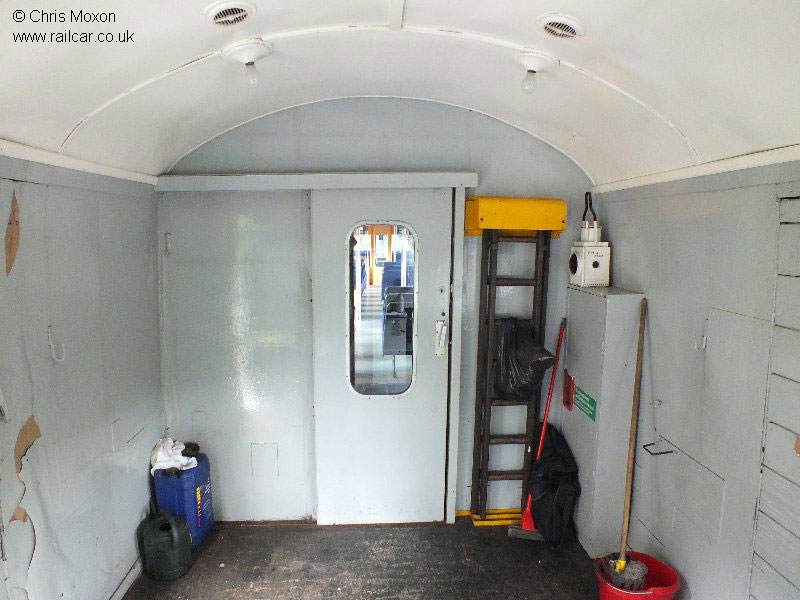

M51618's guards van, 24/6/12. Chris Moxon

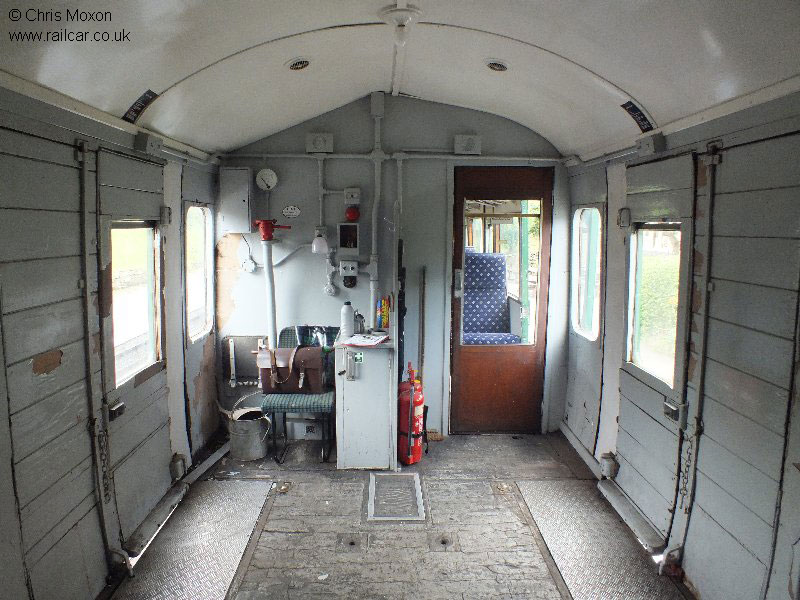

M51618's guards van, 24/6/12. Chris Moxon

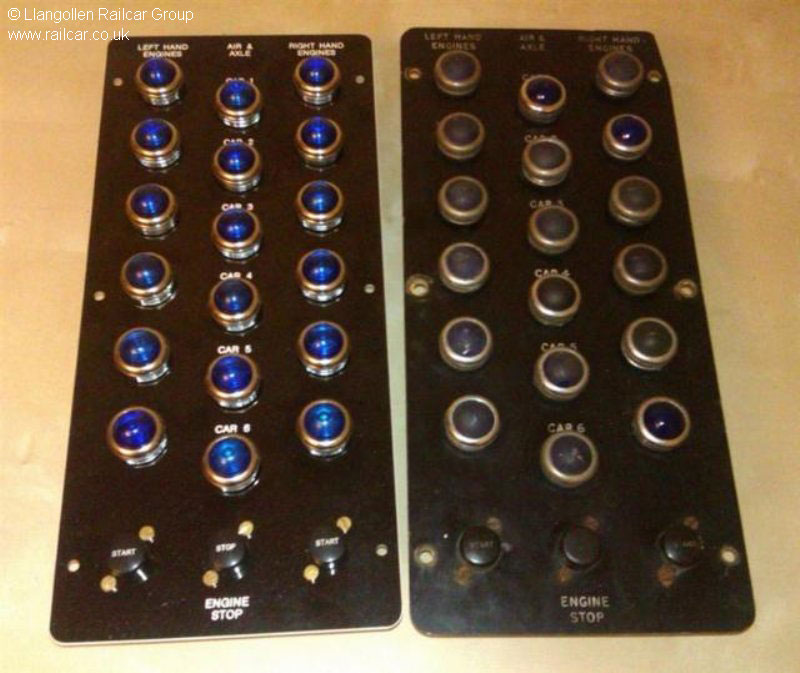

A new air axle panel being fitted to M51618, 18/6/12. Llangollen Railcar Group

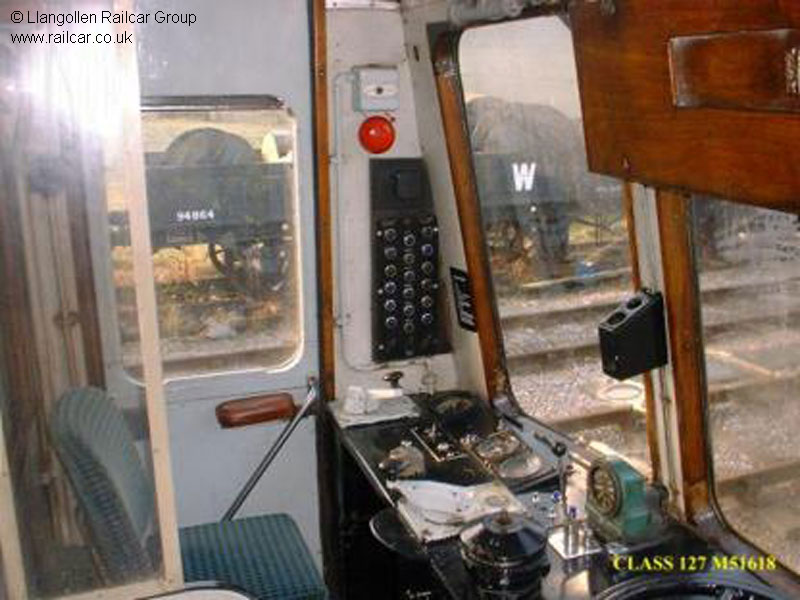

M51618's driving cab. Llangollen Railcar Group

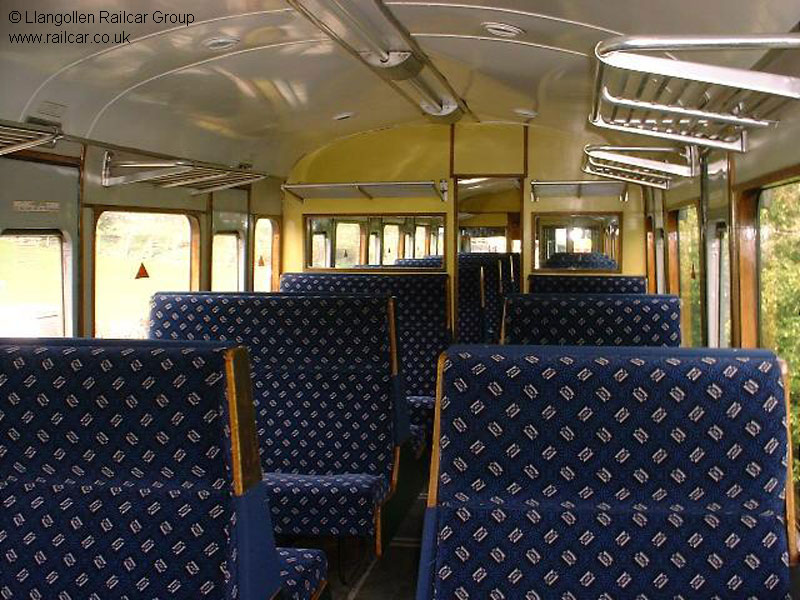

M51618's passenger saloon, reupholstered in 2000. Llangollen Railcar Group
