50447 Class 104 Driving Motor Brake Second

Home Railway

Llangollen Railway

Location History

Llangollen Railway93-Present

Current Location

Llangollen Railway





Current Status

Stored





Current Livery

BR Green/BR Blue (Plain End)





TRA Designation

4



Partner Vehicle(s)

None





Owner

Kevin Dowd & Robert Simpson





Website

www.llangollenrailcars.com



Record Last Updated

5 December 2015



Preservation Modifications
Minor modifications to interior for use as a mess room (to be reversed during eventual restoration).

Preservation Information
50447 was preserved in 1992 in a bulk buy of 12 Class 104 vehicles by private individuals Kevin Dowd and Robert Simpson. The fleet was eventually distributed over three heritage railways and 50447 was located on the Llangollen Railway on a long term loan arrangement with Llangollen Railcars.

50447 was one of three Class 104 vehicles moved to Llangollenand fellow DMBS 50454 was in better condition so 50447 was turned into a mess room for the group, who did not have any undercover facilities at the time. 50454was restored to run with the DMCL which was on the line, 50528.

Many years passed with 50447 fulfilling its static role, and it was repainted into BR Green on the public side during the late 1990's to make it more presentable to passing trains.

In 2011, the vehicle (recently made redundant as a mess room following the aquisition of a replacement coach with better facilities) was assessed for full restoration to operating condition, which was always a long term aim of the group. March saw one of the engines started up for the first time since 1995.

2012 saw the interior slowly cleaned out (in between other jobs) and in April some repairs had been made to the No1 engine which started to run much more sweetly. By the summer most of the missing parts required for the restortion had been obtained. In October the vehicle was moved indoors for the winter for restoration to continue. This work focussed on making the vehicle's roof watertight and involved replacing the life-expired plates which covered the holes in the roof for the original vents.

2013 saw more work on an occational basis. The roof plating was cmpleted and finished off with coat of primer. Some work was completed on the No2 engine so by the end of the year both were operating smoothly.

In 2014 the restoration was suspended however some small components such as air pipes were manufactured ready for when work begins in earnest.

Future Plans
Full restoration when resources allow.

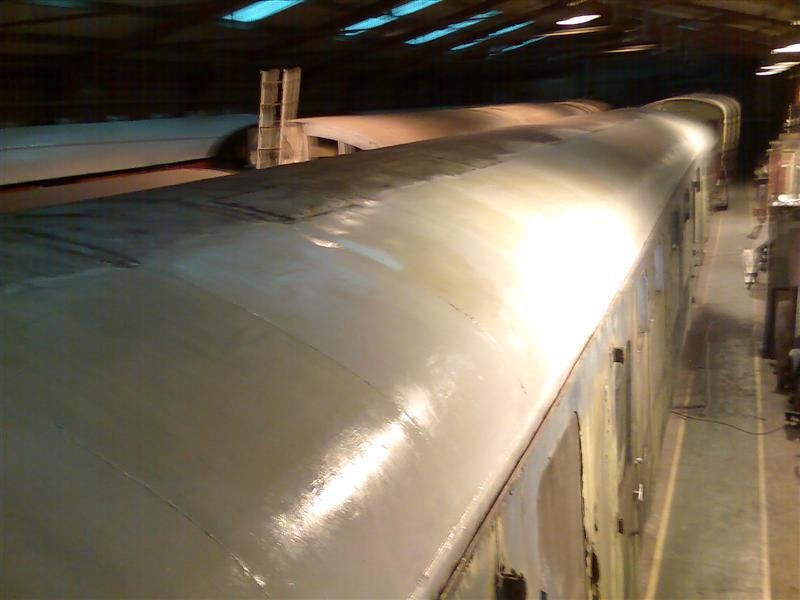

The roof, freshly painted after stripping and waterproofing which involved the resealing of the roof vent patches, 14/10/13. Llangollen Railcar Group

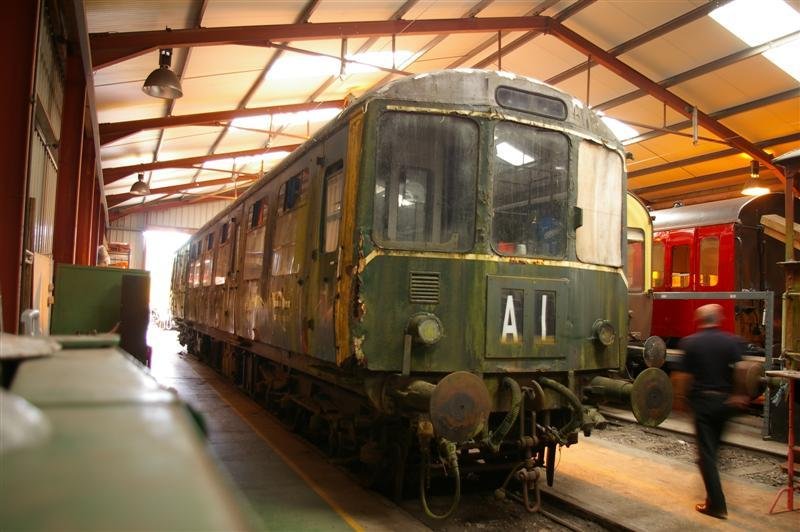

M50447 back inside the workshops for some roof restoration, 17/6/13. Llangollen Railcar Group

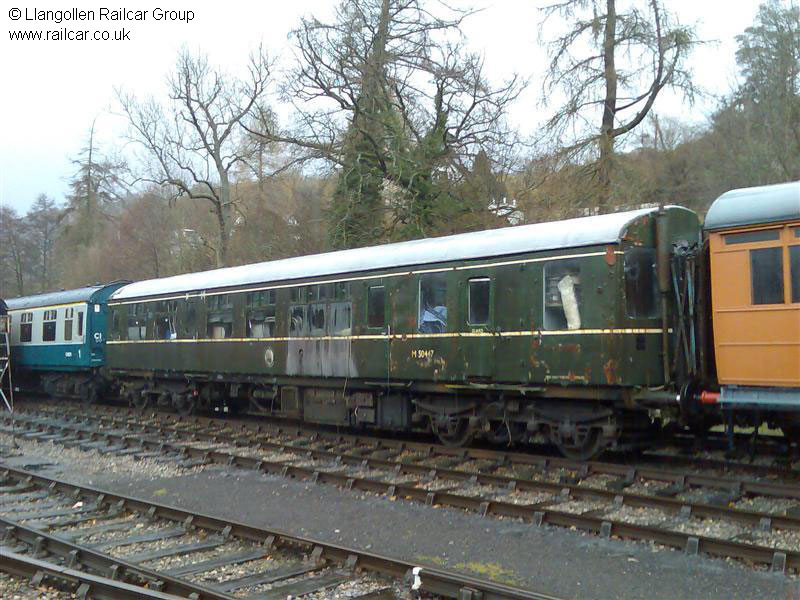

M50447 on the move again during a shunt at Pentrefelin. All components for the vehicle's restoration have now been obtained, 24/12/12. Llangollen Railcar Group

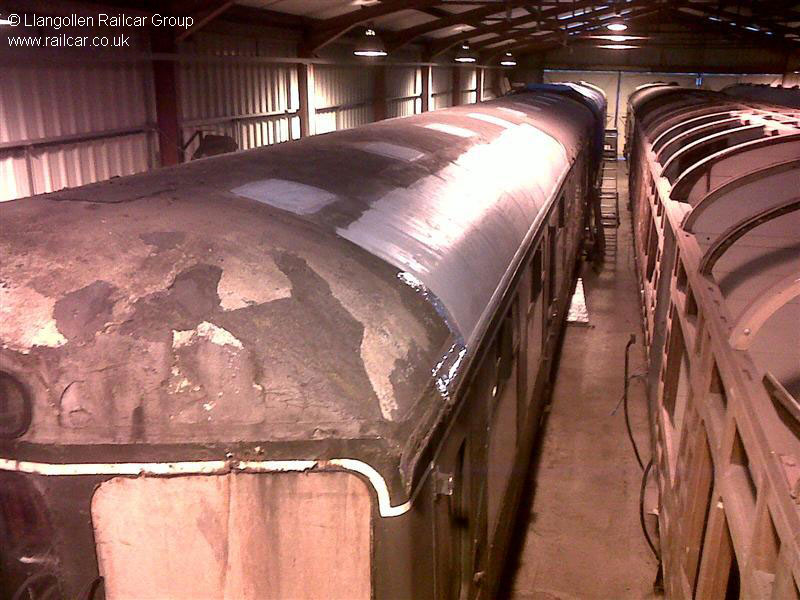

All of the replacement ventilator cover panels have now been fitted and painted and the roof is being investigated for leaks. Quite a lot of the guttering has come away from the body which has led to water ingress. Where the roof has been inspected it is being scabbled down to bare metal and primed with an acid etch primer which will serve as a key for future paint jobs and will in the meantime serve to protect the roof against further damage. The severe corrosion apparent on the cab end can clearly been seen in this photograph, 29/10/12. Llangollen Railcar Group

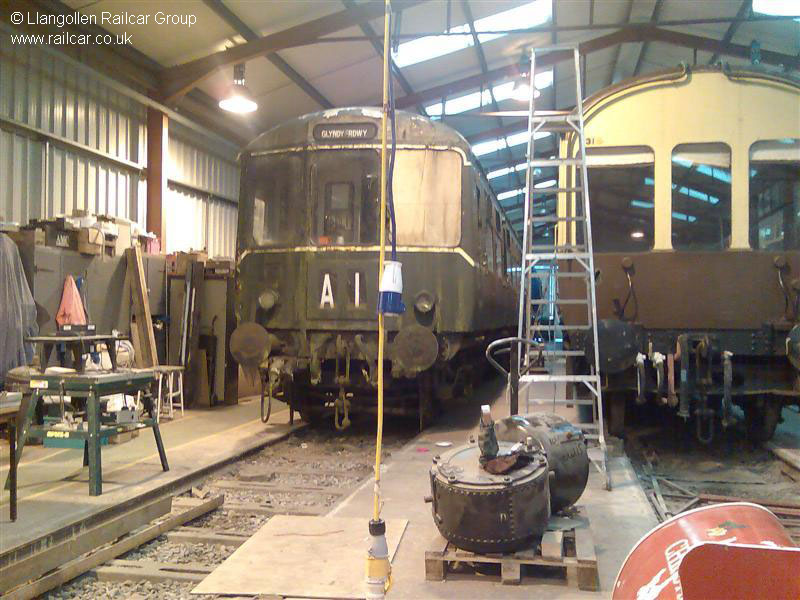

With 50447 being in the workshops for its roof job there's been a rare chance this week to get a photo of it, as normally it's hidden behind other vehicles, 22/10/12. Llangollen Railcar Group

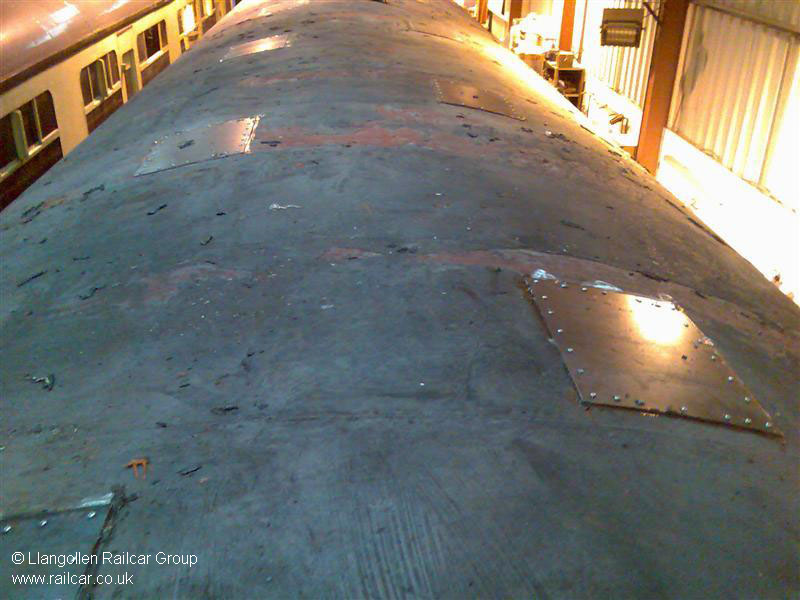

M50447 now in the workshop so that work to the roof to make it watertight can be completed. The problem was the ventilator blanking plates which were fitted in BR days. These were too thick and so did not expand and contract at the same rate as the roof. In addition they were held on only by six rivets each and had not been sealed between the roof and the plate, the omission being "corrected" by trying to seal round the outside gap afterwards. This has meant that the coach has, for years, had a number of minor leaks. To cure this new panels of the correct thickness have ben made andinstalled using about 20 self-tappers per plate and using an adhesive/sealer between the plates and the roof to prevent water getting in. Over the weekend 11 out of the 19 were fitted, 15/10/12. Llangollen Railcar Group

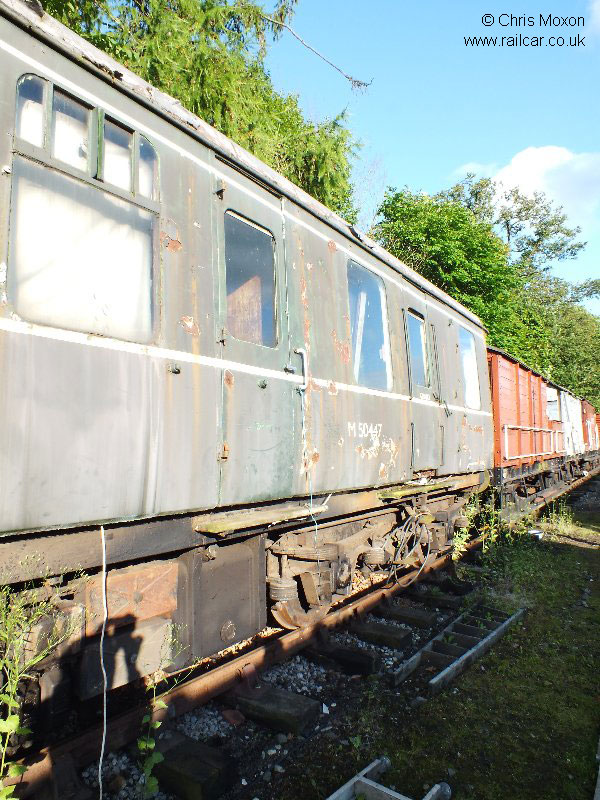

M50447 under restoration at Prentrefelin, 24/6/12. Chris Moxon

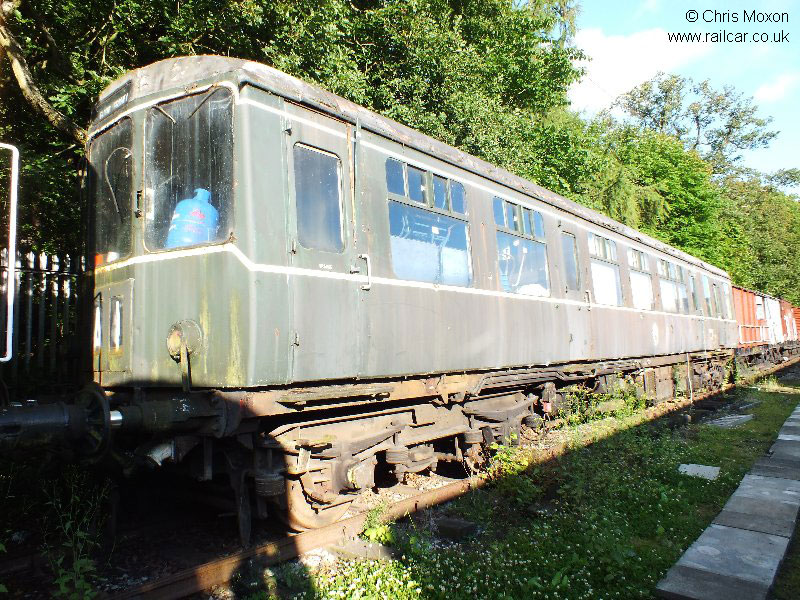

M50447 under restoration at Prentrefelin, 24/6/12. Chris Moxon

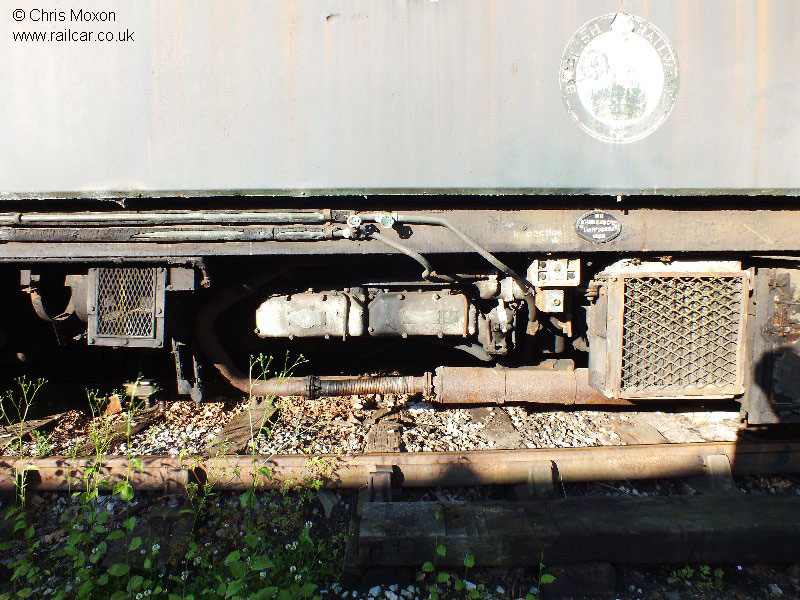

M50447 under restoration at Prentrefelin, 24/6/12. Chris Moxon

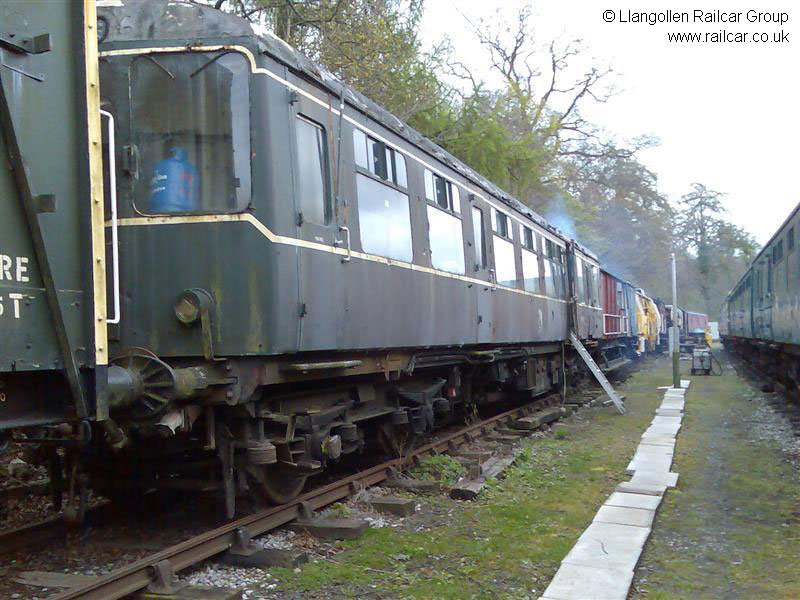

M50447 in its usual spot at Pentrefelin, 30/4/12. Llangollen Railcar Group

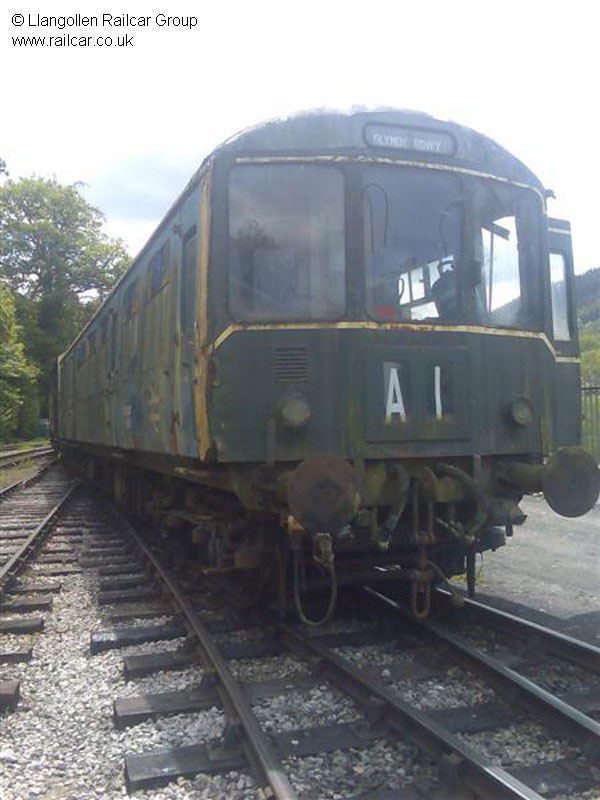

At Pentrefelin there was a big shunt round in the yard and some vehicles which were buried way behind our stores and messing vehicles were removed. this resulted in the unusual sight of an eight-car DMU towing two Mark 1 coaches as we had to clear the yard out to make some room. During one of the moves long-derelict M50447 was pulled out so that we could get a better view of the secondman's side. Despite the raggy appearance it is not in bad order considering the number of years it has been in open store, 1/7/11. Llangollen Railcar Group

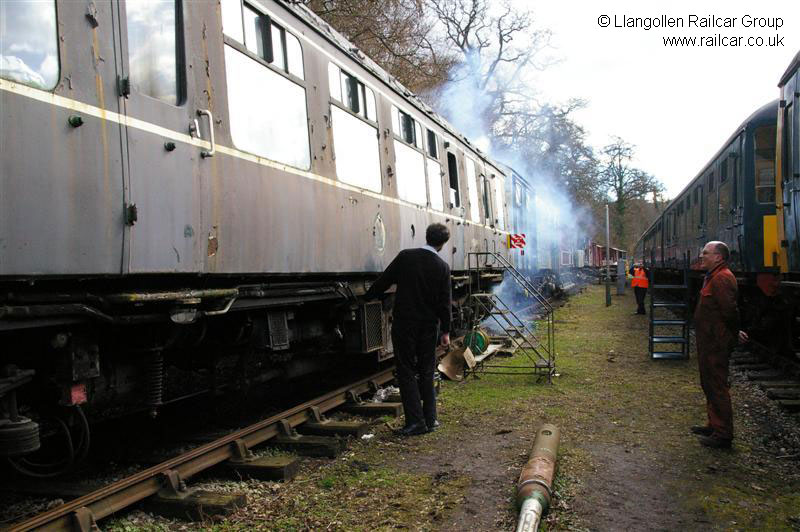

M50447 being started up for the first time since 1995 following several weeks of work by Llangollen Railcars volunteers. The vehicle has been used as a stores and mess coach since 1994 and last ran as a passenger vehicle around 1989. The start up in 1995 was only brief and prior to that the engines last ran in 1990, 20/3/11. Llangollen Railcar Group

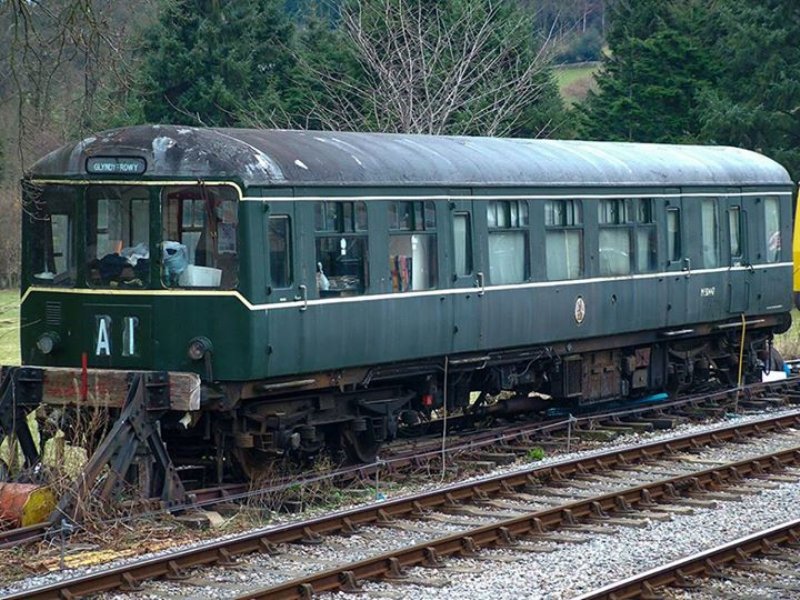

M50447 stored at Glyndyfrdwy, 29/2/04. Brian Battersby

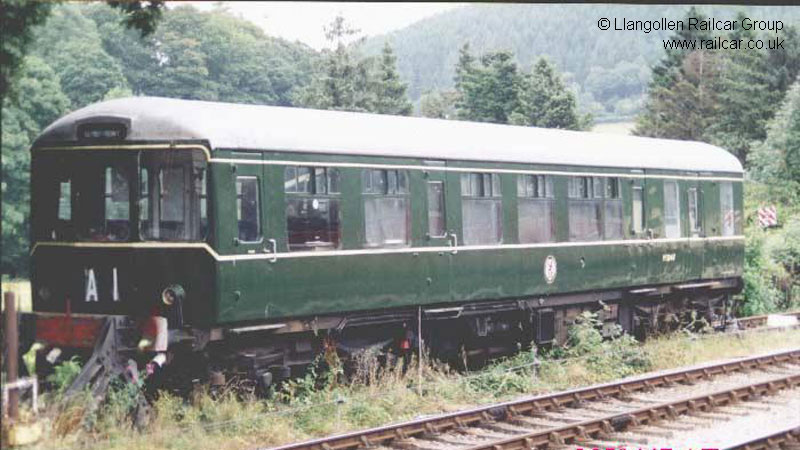

M50447 at Glyndyfrdwy, now repainted into green to make the vehicle more presentable to passing trains. Llangollen Railcar Group

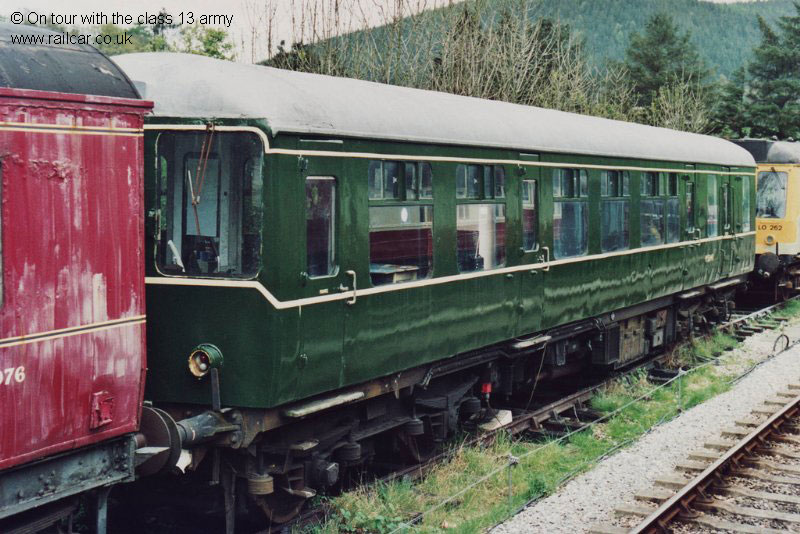

M50447, fresly repainted on the drivers side at Glyndyfrdwy, 1/5/99. On tour with the class 13 army

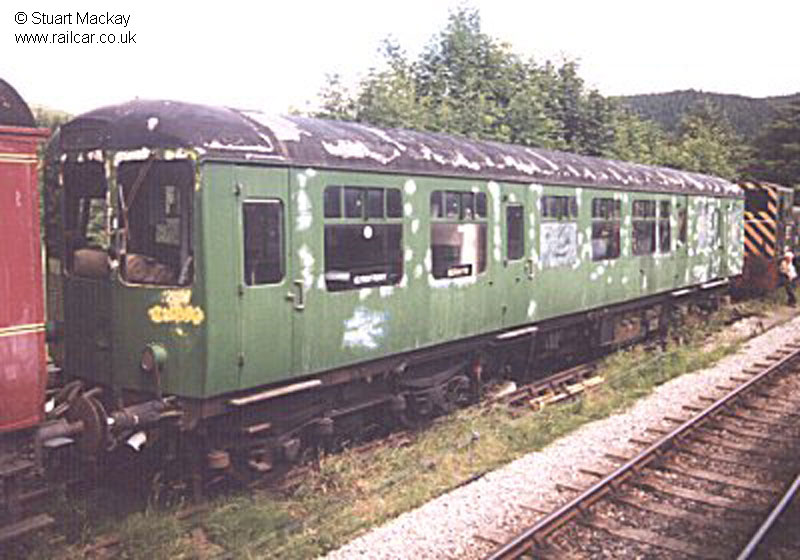

M53447 at Glyndyfrdwy being used as a stores vehicle by the railcar group, 28/6/98. Stuart Mackay



M53447 in the early days at Glyndyfrdwy, 24/9/94. Robert Chilton



Interior

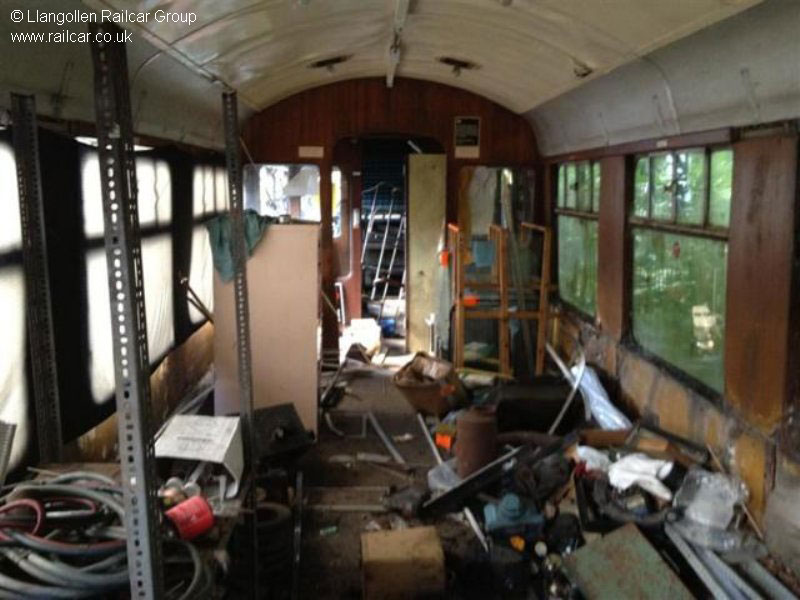

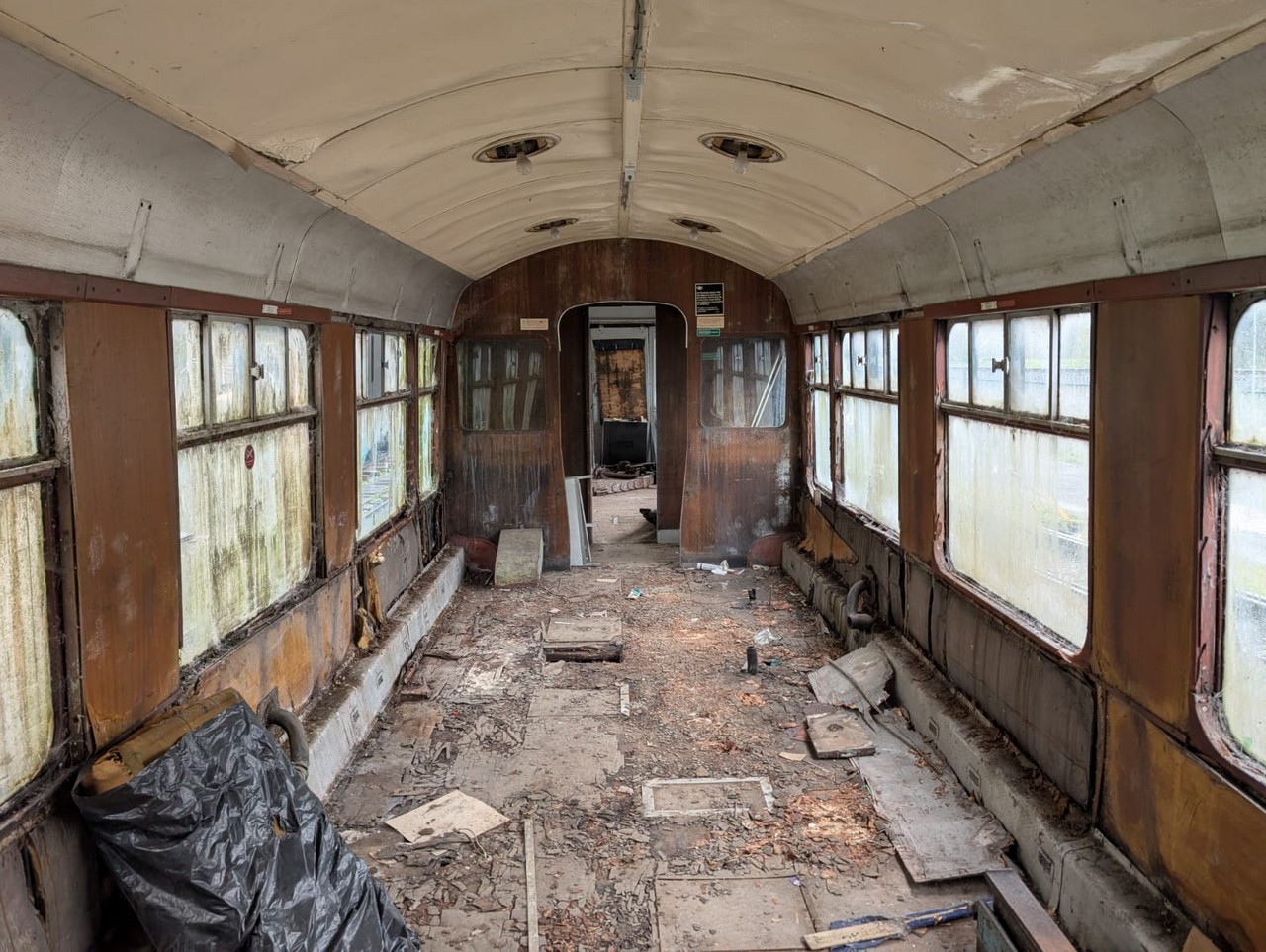

M50447's middle saloon, 27/7/12. Llangollen Railcar Group

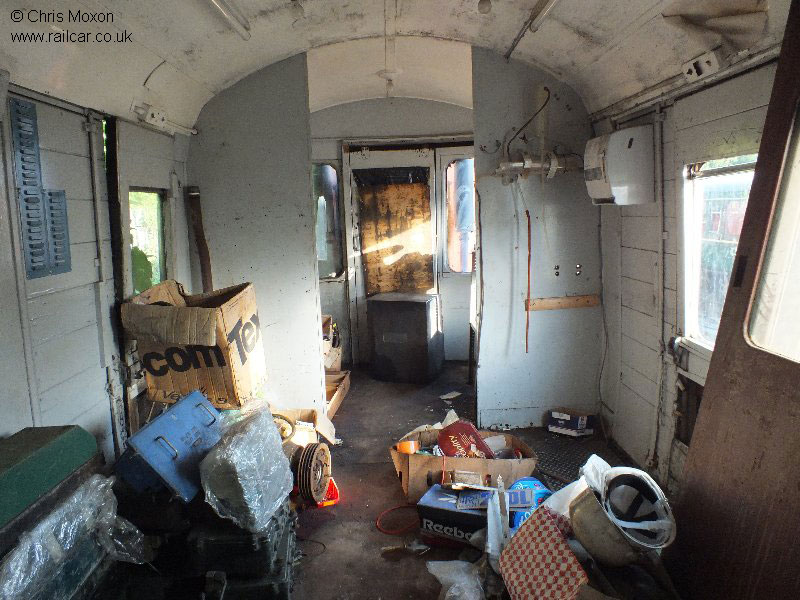

M50447's guards van, 24/6/12. Chris Moxon



Sandwiches at the ready inside M50447 during its time as a mess coach.Llangollen Railcar Group
