51625 Class 127 Driving Motor Brake Second

Home Railway

Midland Railway Butterley

Location History

Midland Railway Butterley 90-Present

Current Location

Midland Railway Butterley





Current Status

Operational

Visited Railways

Severn Valley Railway Oct 04

Current Livery

BR Green (Speed Whiskers)





TRA Designation

4



Partner Vehicle(s)

59609 & 51591





Owner

MRT Railcar Group





Website





Record Last Updated

1 January 2017



Preservation Modifications
The opportunity was taken, during the recoversion from parcel to passenger configuration, to omit a centre partition and one bay of seating at the rear of the vehicle to accommodate wheelchair bound passengers.

Preservation Information
BR agreed to sell 51625 to the MRT Railcar Group to make up a 2-car set, as their original bid for 51591 & 51610 only secured the former vehicle. The pair arrived at the Midland Railway Butterley in 1990.

The 2-car set was used for a number of years as a works train in connection with the MRT extension to Riddings. In the mid 1990's the vehicle was removed from service and languished in the sidings while work on partner 51591 progressed.

However in 2004 one side saw work to produce a display as a "tapered restoration" at Railcar 50. This involved each section of the vehicle showing the progressing stages of exterior restoration. A year later the tapered side was completed and the other side also restored so the vehicle could re-enter traffic with 51591, albeit with its interior stripped and locked out of use.

The vehicle operated in this formation for several years until August 2009 when it was withdrawn for its turn in the workshops for a full reconversion from parcels use to passenger configuration. This involved reconstructing the fully stripped interior, removing the roller shutter doors and plated over windows etc and reconstructing the original passenger cofiguration. Much bodywork was also undertaken, with reglazing of windows and significant cant rail replacement.

51625 was re-launched into passenger service in March 2011, seeing its first passengers for 28 years.

51625 spent part of 2016 out of use due to suspected wheelflats on one of the other vehicles within the set.

51625 operates with59609 & 51591 in a 3-car set and is currently (2017) the only Class 127 set in traffic.

Future Plans
This vehicle is owned by the MRT Railcar Group who's intention is to recreate a "proper" and complete Class 127 set, as originally built. The original units were 4-car sets and other vehicles have been aquired to recreate this formation as closely as possible. 51625 has a long term place as one of the two powercars in this eventual set. When complete the set will be formed of: 51591 - 59609 - 59659 - 51625.

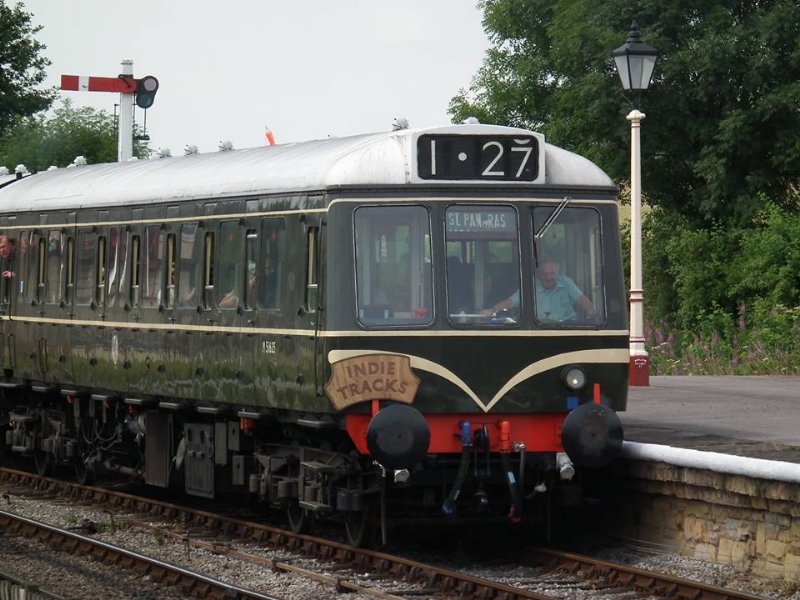

M51625 arrives into Swanwick Junction whilst in service during a music festival, 16/7/13. Tom Meakin

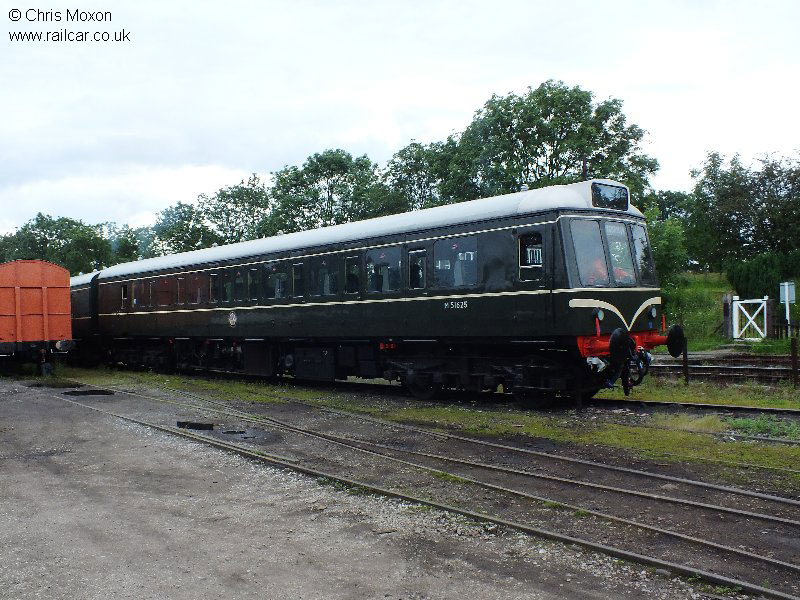

M51625 in Butterley yard, 14/7/12. Chris Moxon

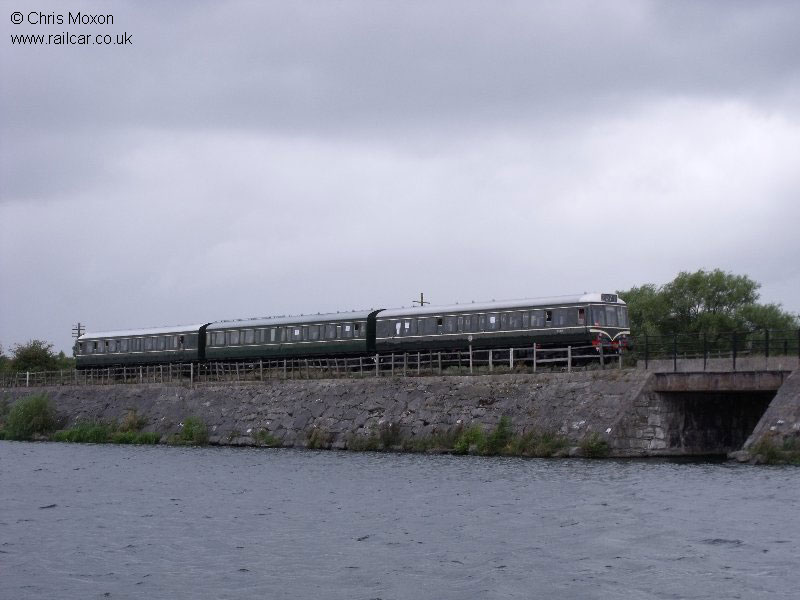

M51625, M59609 & M51591 cross Butterley Reservoir, 11/9/11. Chris Moxon

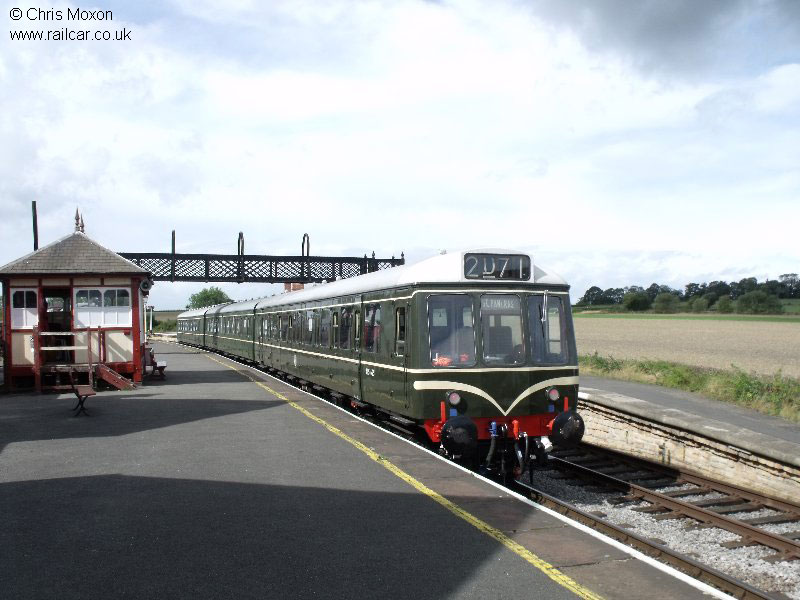

M51625, M59609 & M51591 call at Swanwick Junction, 11/9/11. Chris Moxon

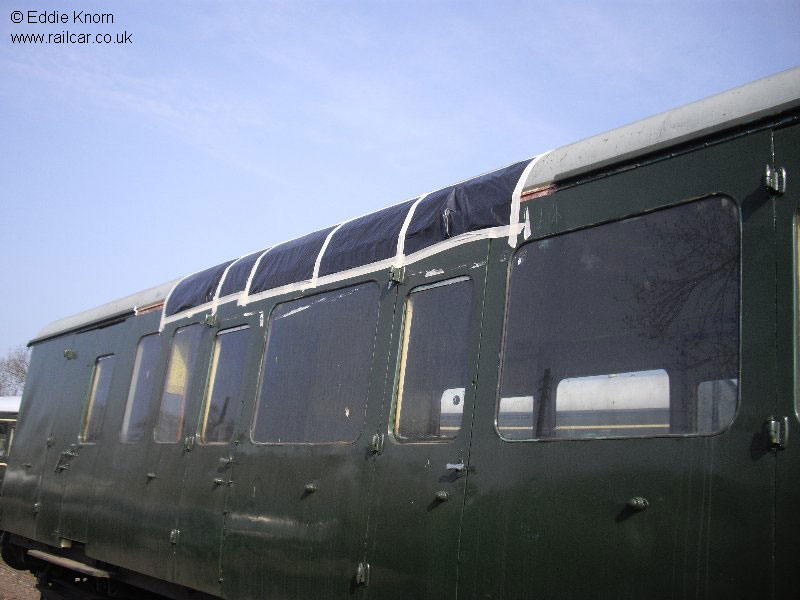

Cantrail repairs on secondman's side just ahead of Guard's van. Guttering and part of the roof skin removed and corroded angle section cut away, with replacement angle section let in, Apr 2010. Eddie Knorn

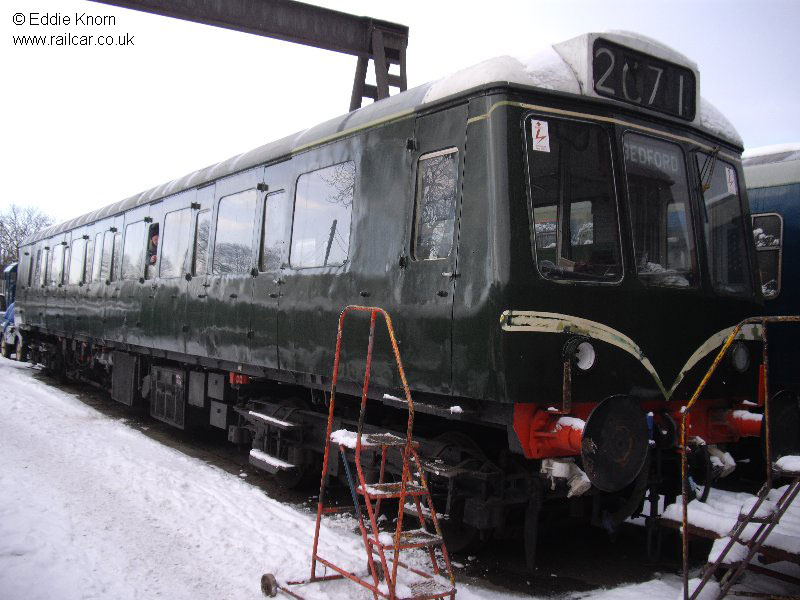

At Butterley, now withdrawn for reconstruction of the interior and an external repaint, Mar 2010. Eddie Knorn

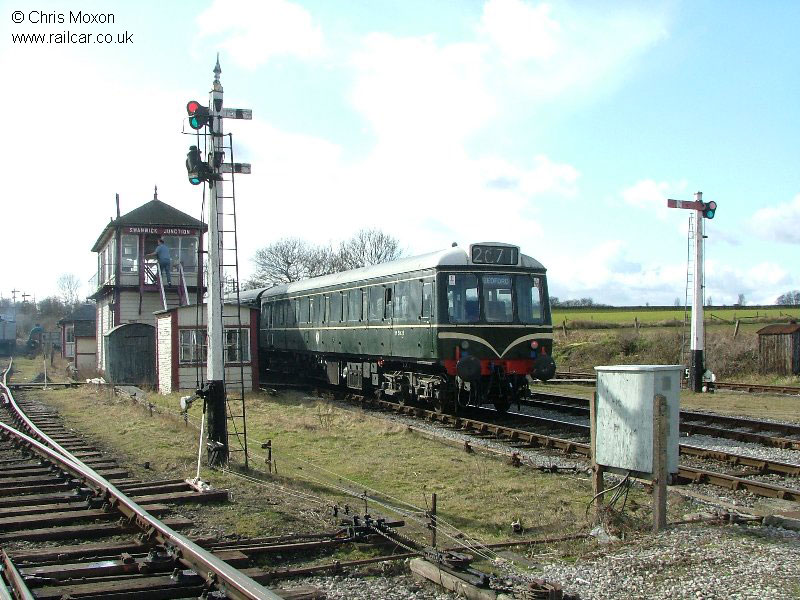

Operating "colliery branch shuttles" from Swanwick Junction's platform 4 with 59609 & 51591, 28/3/09. Chris Moxon

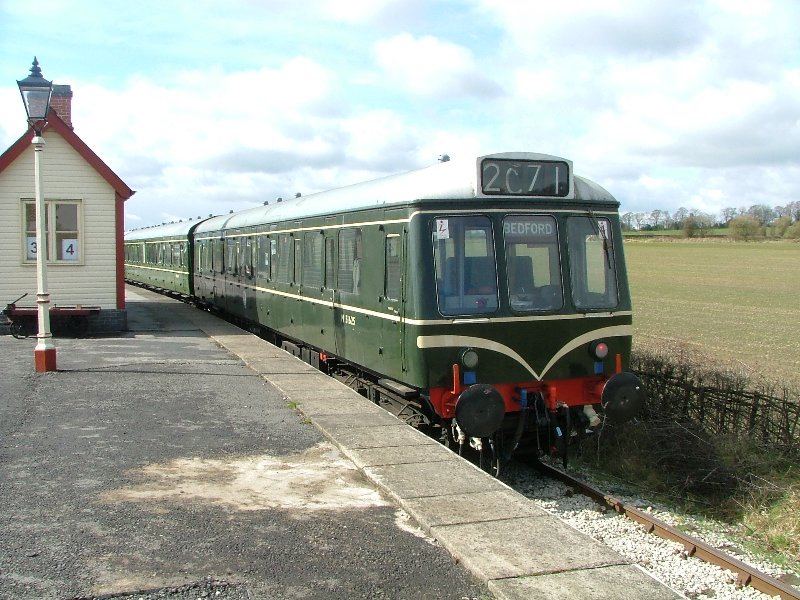

51625 at Swanwick Junction with 59609 & 51591, 28/3/09. Chris Moxon

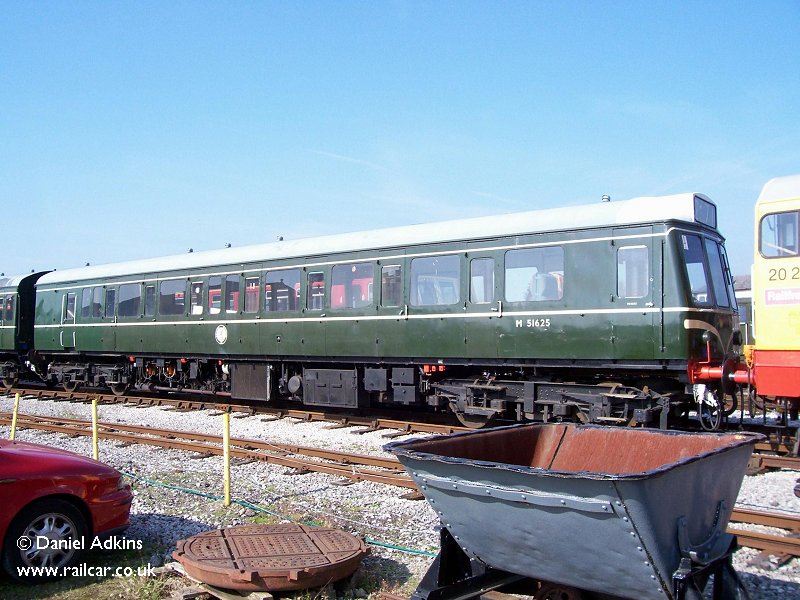

At Swanwick Junction, 27/9/08. Daniel Adkins

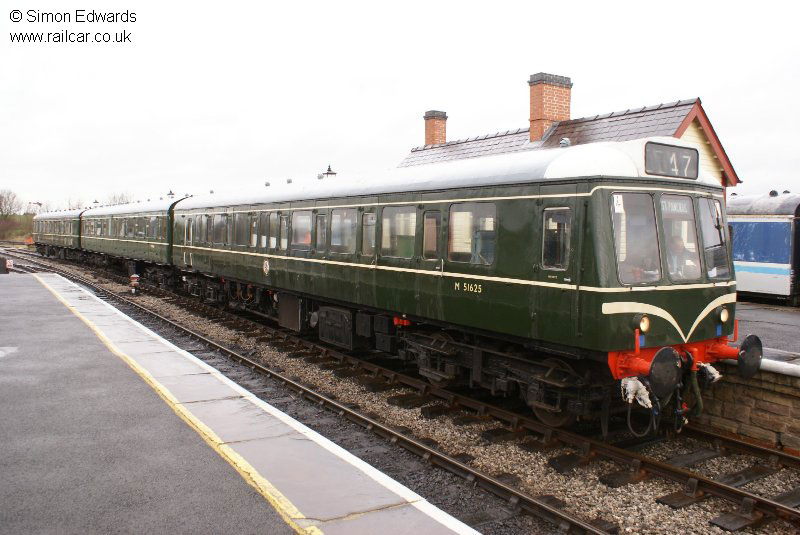

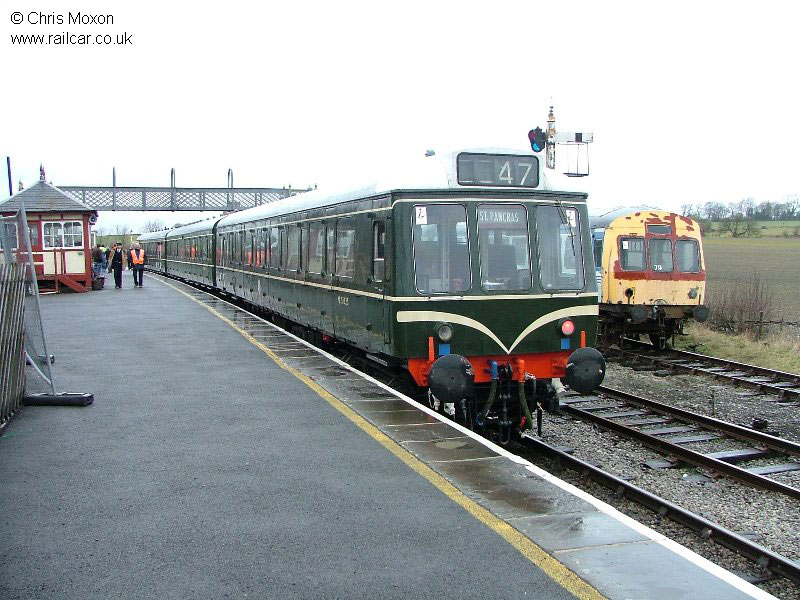

At Swanwick Junction, 29/3/08. Simon Edwards

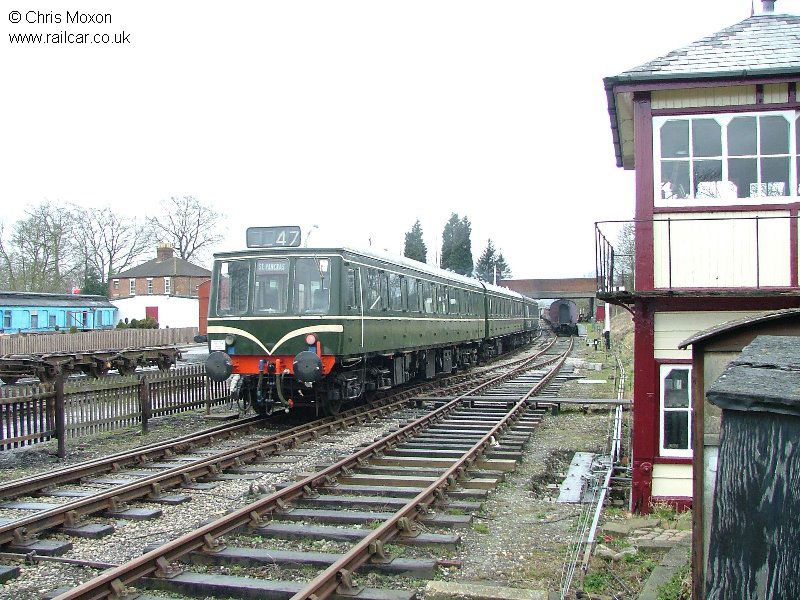

Passing the signal box at Butterley, 29/3/08. Chris Moxon

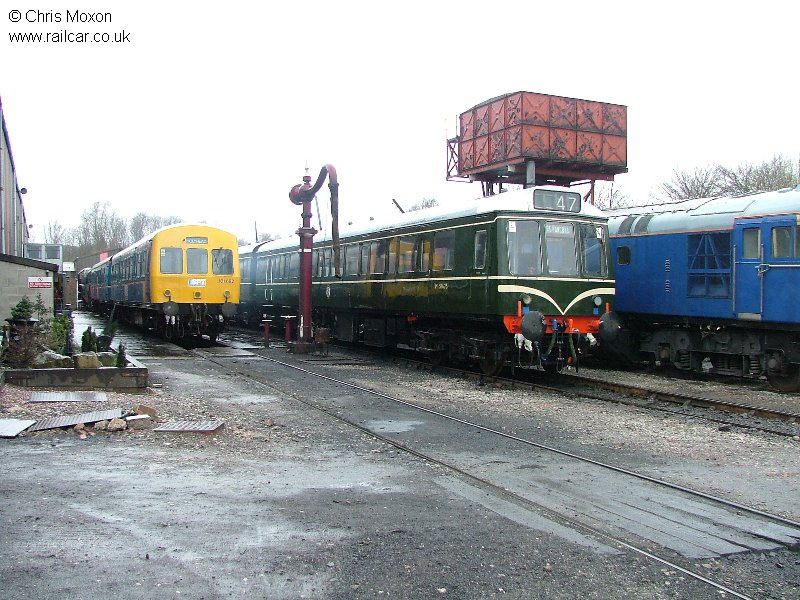

Awaiting its next duty at Swanwick Junction, 29/3/08. Chris Moxon



At Swanwick Junction, 29/3/08. Chris Moxon

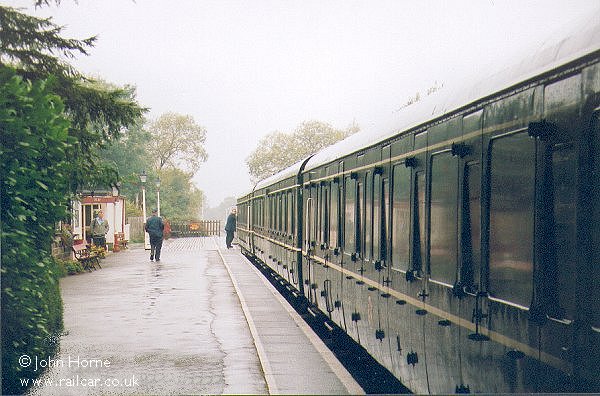

Awaiting departure from Butterley station during the DMU Gala, 8/10/05. John Horne

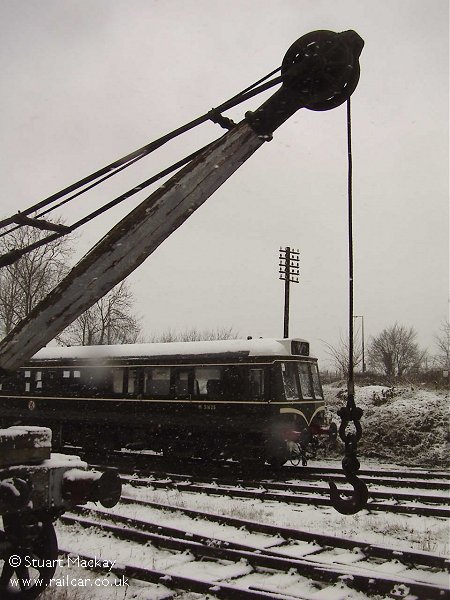

After returning to the MR-B from Railcar50 the painting on the display side was completed. Seen in the snow at Butterley soon after leaving the paint shop, 23/2/05.Stuart Mackay

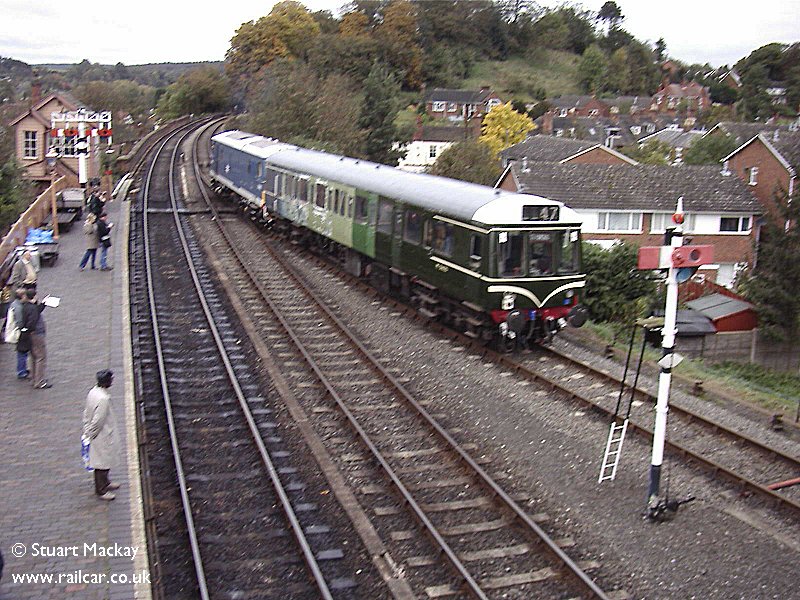

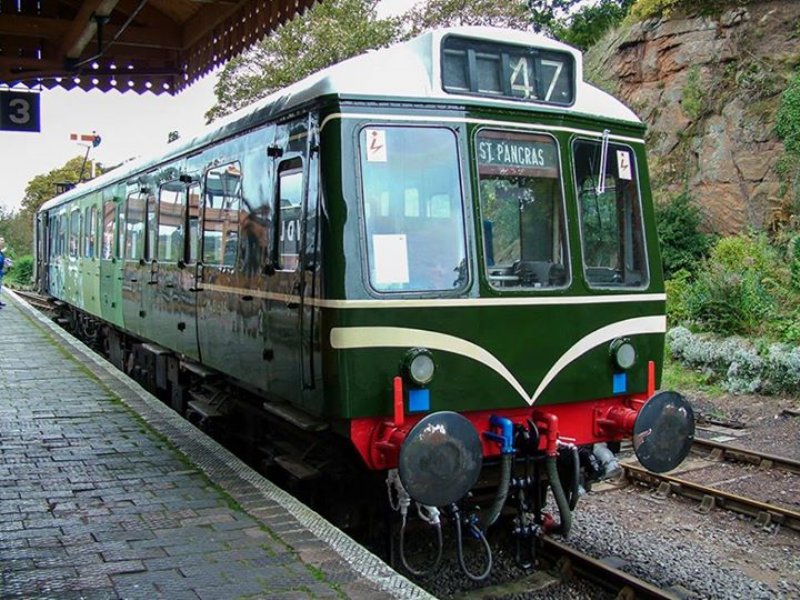

Being shunting into the it's display position at Bewdley for Railcar50. The vehicle was a "tapered restoration". Externally on the No.2 side from the rear to the front the stages done in a repaint were shown, and inside the rear was still in ex-service parcels condition which gradually changed to a completed passenger bay at the front, showing at each step all the work involved, 15/10/04. Stuart Mackay

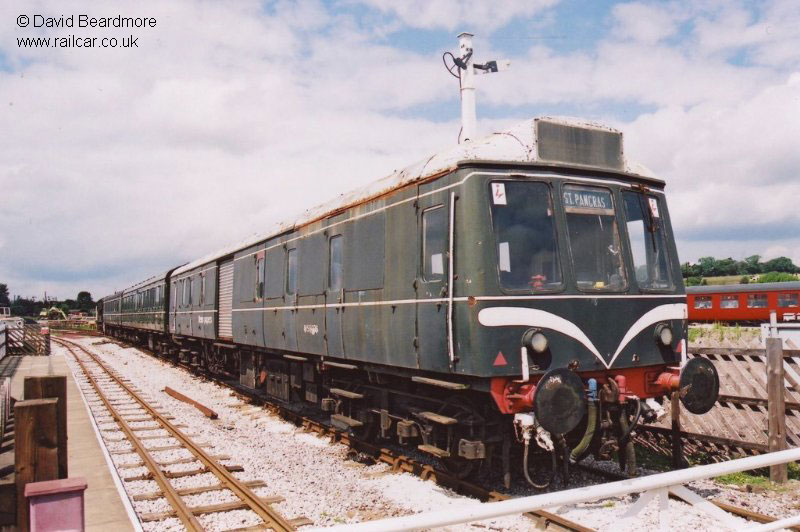

51625, 59609 & 51591 at Swanwick Junction, 2002. David Beardmore

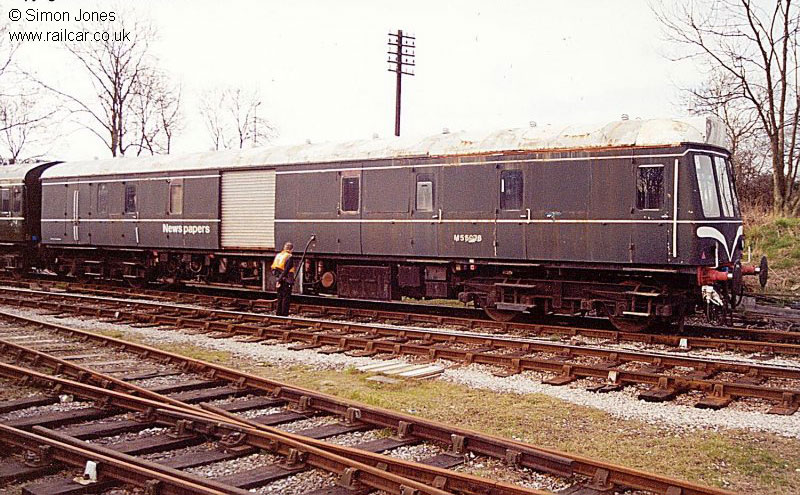

A good view of the roller shutter door which was fitted, 22/3/02. Simon Jones

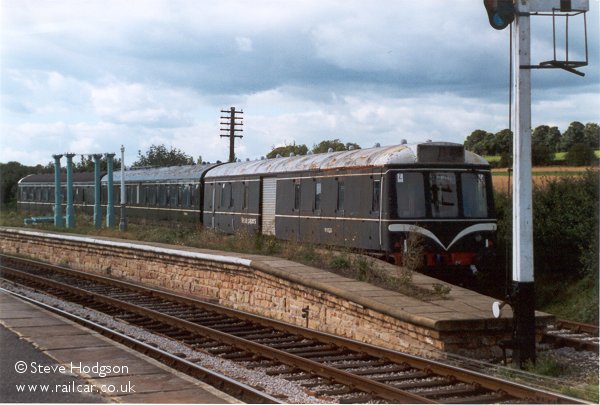

In platform 4 of Swanwick Junction station, 16/9/01. Steve Hodgson

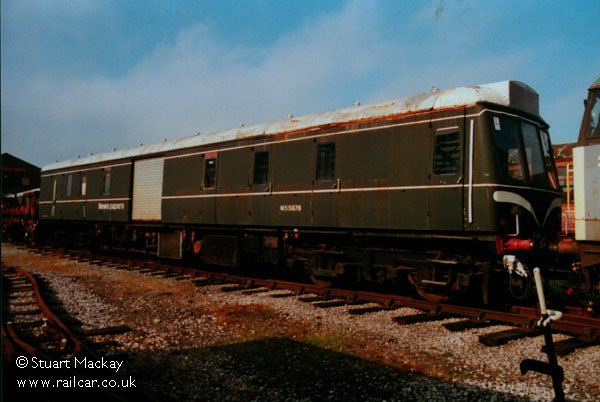

51625 looking in need of some attention, 1/10/00. Stuart Mackay

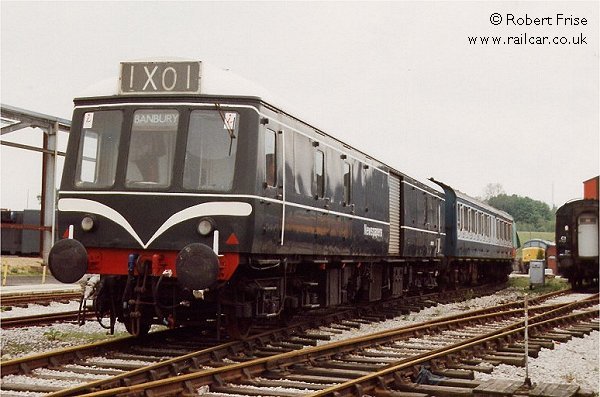

At Swanwick, 22/5/94.  Robert Frise

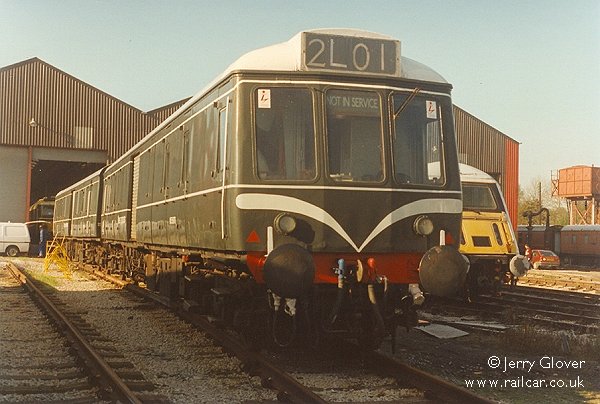

As it was paired with 51591/55966 which ended it's days in green, 51625 was painted at the MRC likewise. Seen outside the shed at Swanwick, 17/10/93. Jerry Glover



Interior

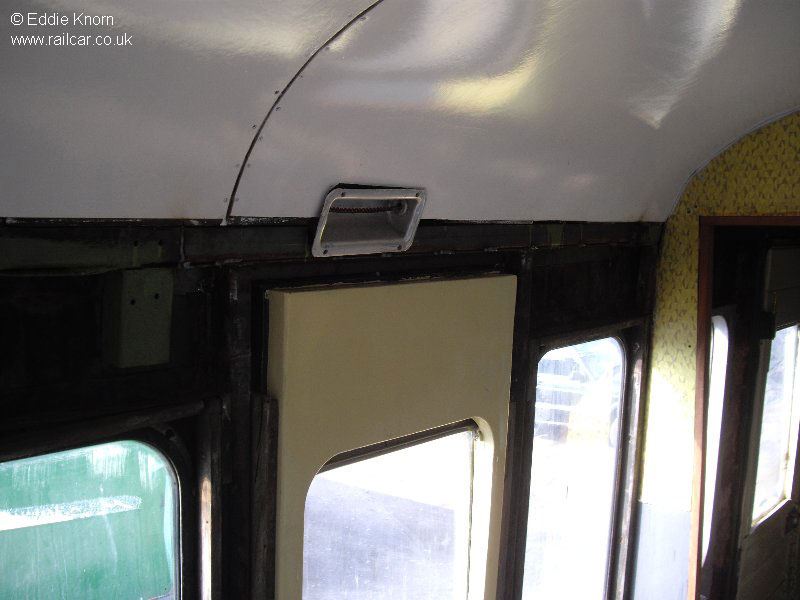

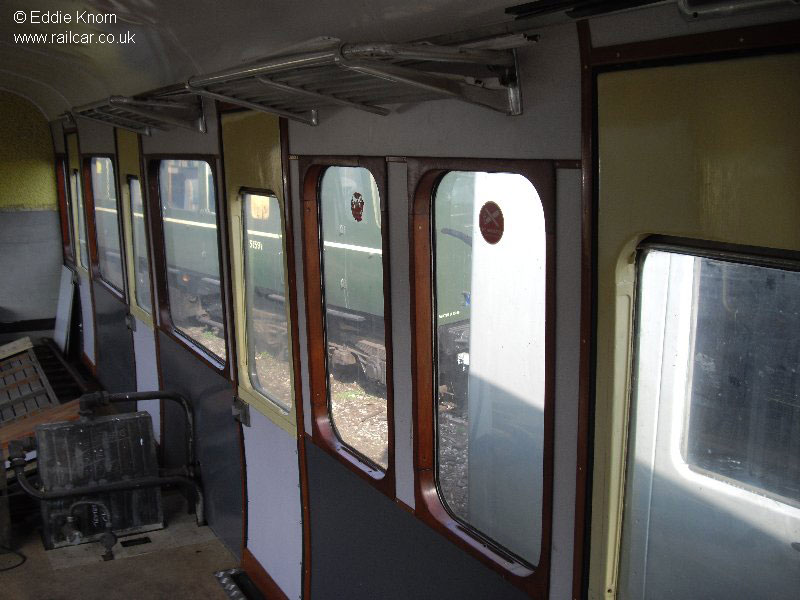

Driver's side interior panelling and luggage racks are now mostly fitted, including rack across the two "half" windows where the partition was, Apr 2010. Eddie Knorn



Driver's side interior panelling and luggage racks are now mostly fitted, including rack across the two "half" windows where the partition was, Apr 2010. Eddie Knorn

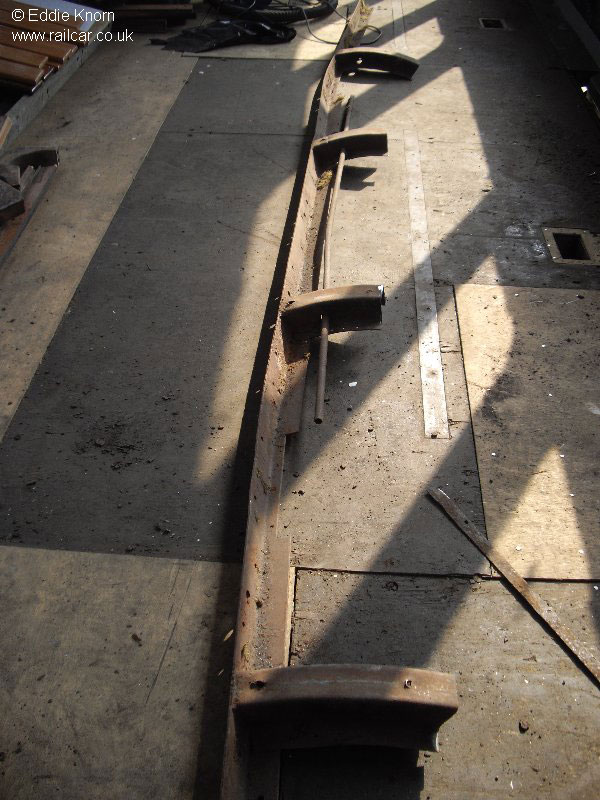

The angle iron section shown on the floor is part of a donor vehicle, Apr 2010. Eddie Knorn

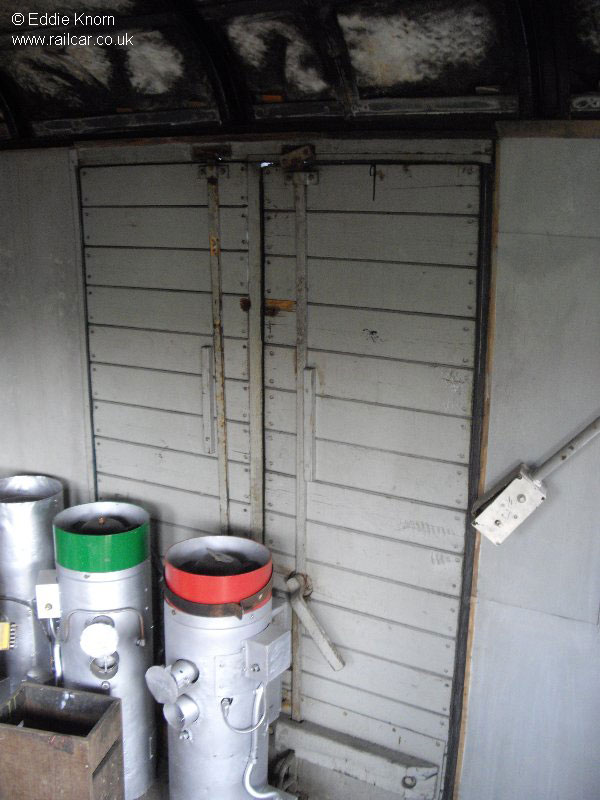

Driver's side of Guard's van presently has a pair of outward opening luggage doors, but work this weekend has seen construction of new hinges to allow in-swinging door to be fitted soon, Apr 2010. Eddie Knorn

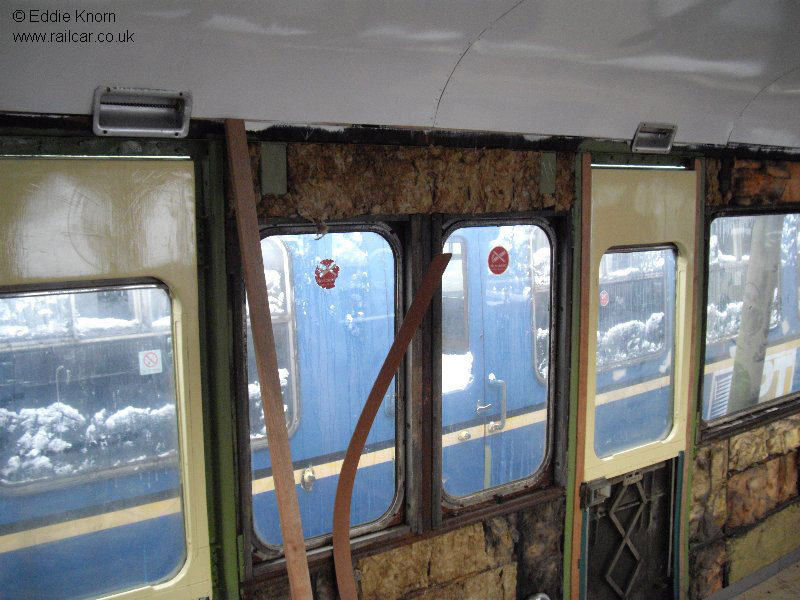

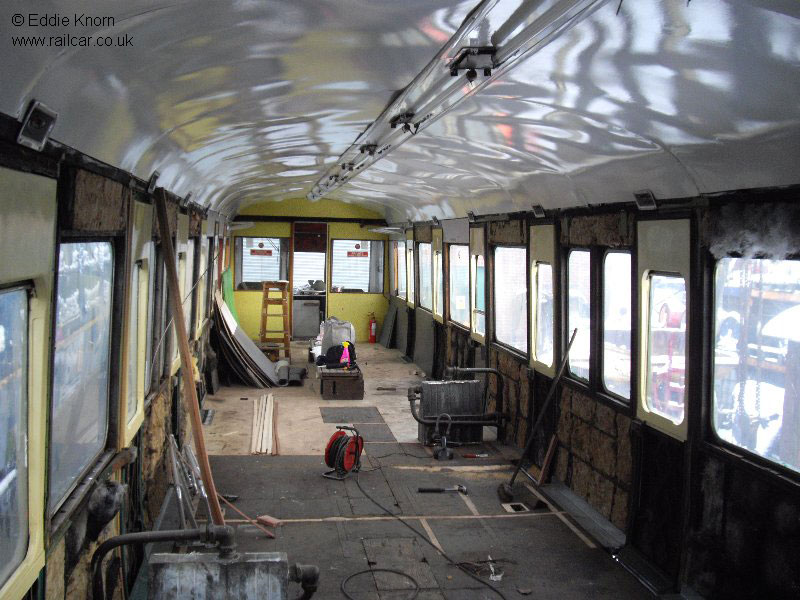

View of the rapidly progressing interior reconstruction, Mar 2010. Eddie Knorn



View of the rapidly progressing interior reconstruction, Mar 2010. Eddie Knorn

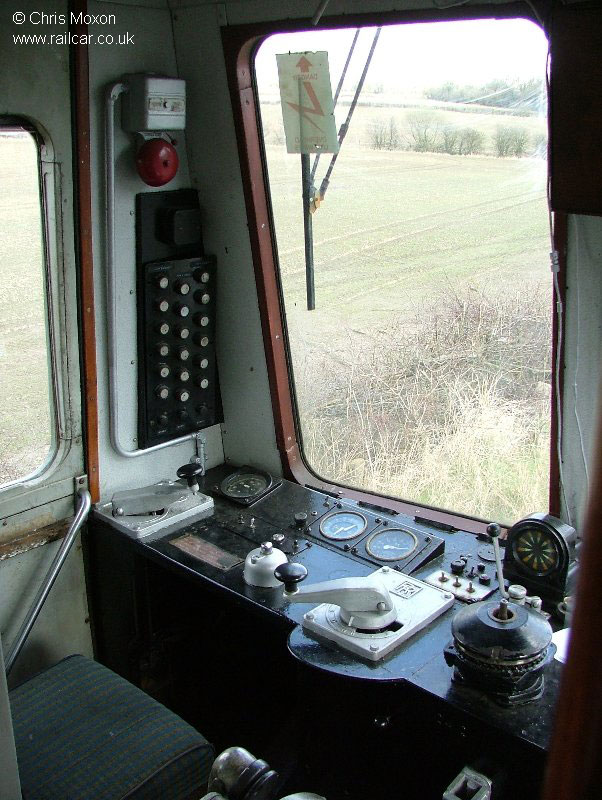

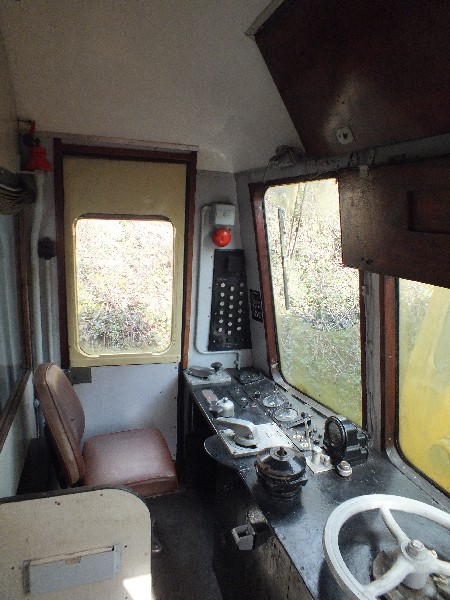

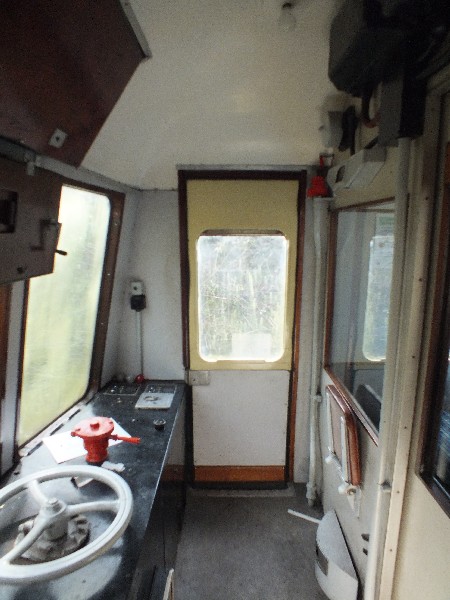

The drivers controls, 28/3/09. Chris Moxon

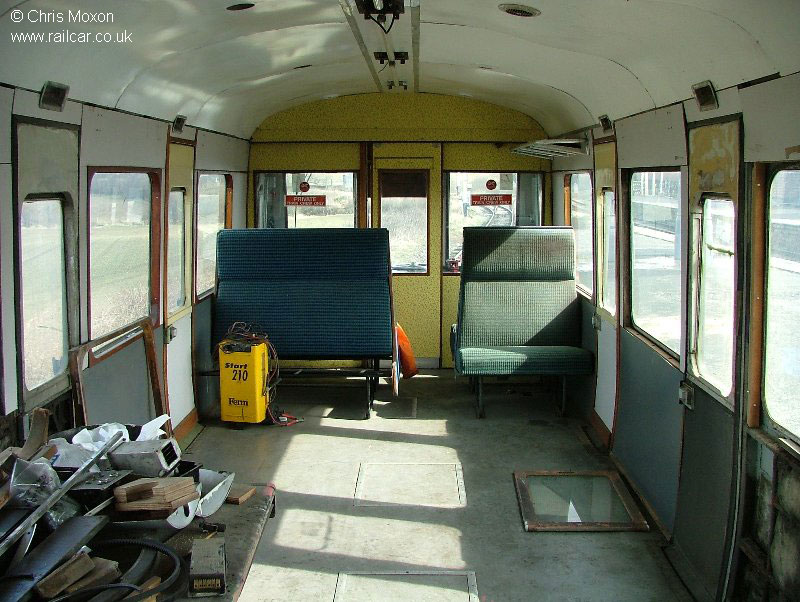

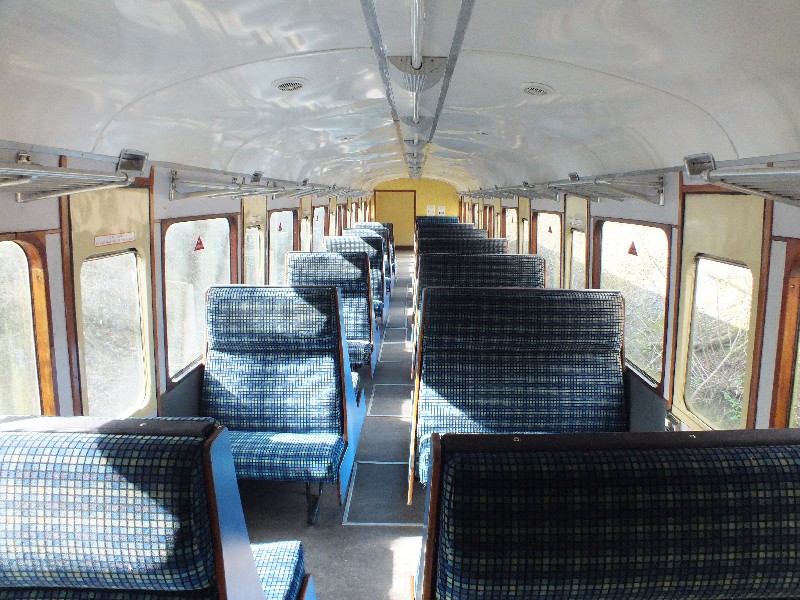

The front saloon, 28/3/09. Chris Moxon

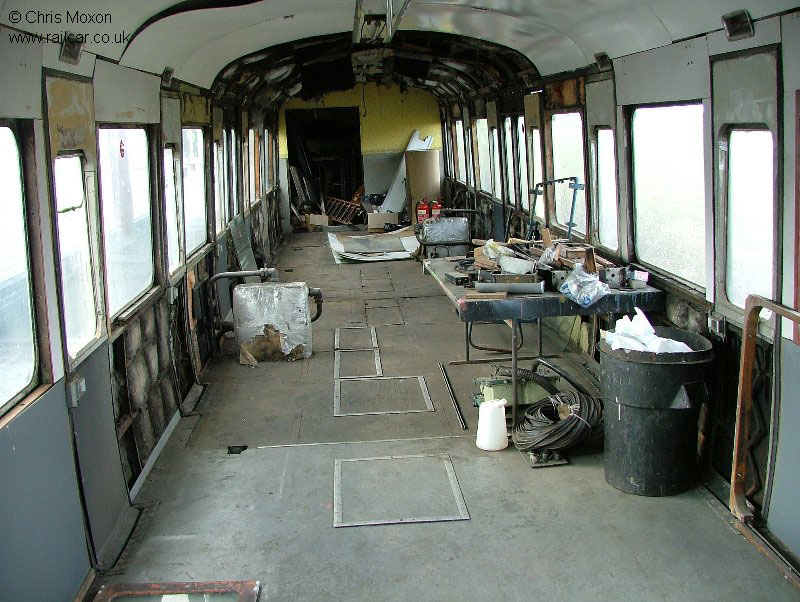

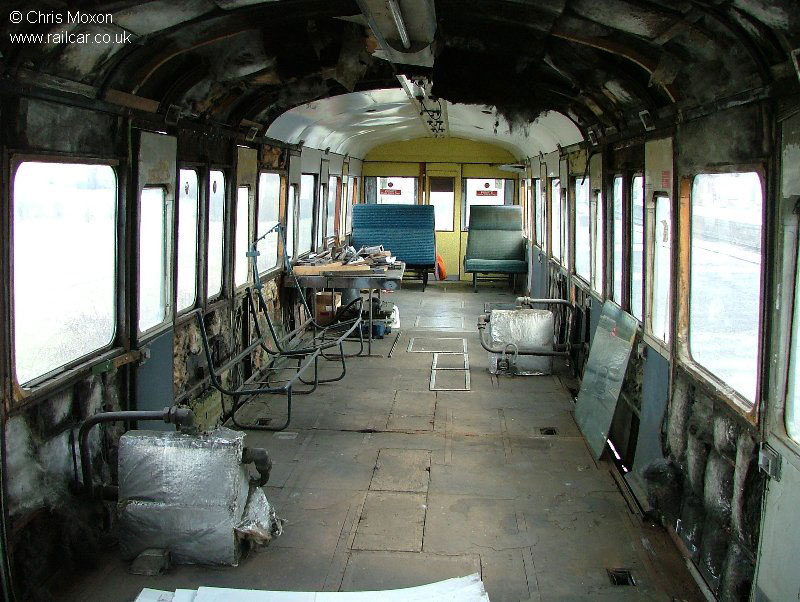

Looking back down the vehicle, 28/3/09. Chris Moxon

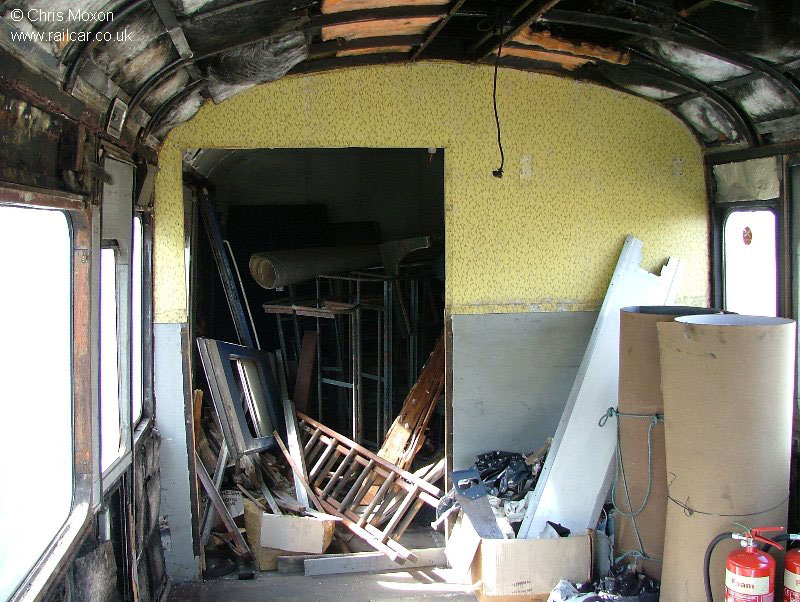

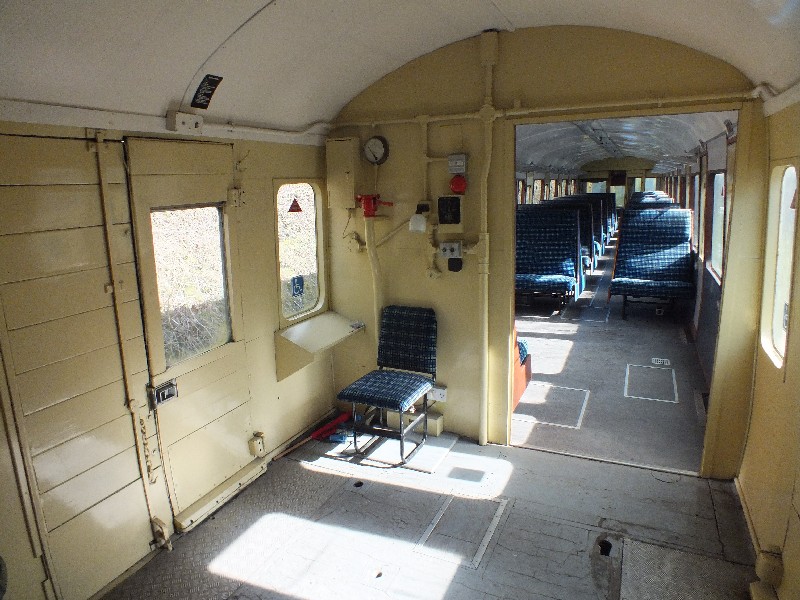

Looking towards the cab from the guards van, 28/3/09. Chris Moxon

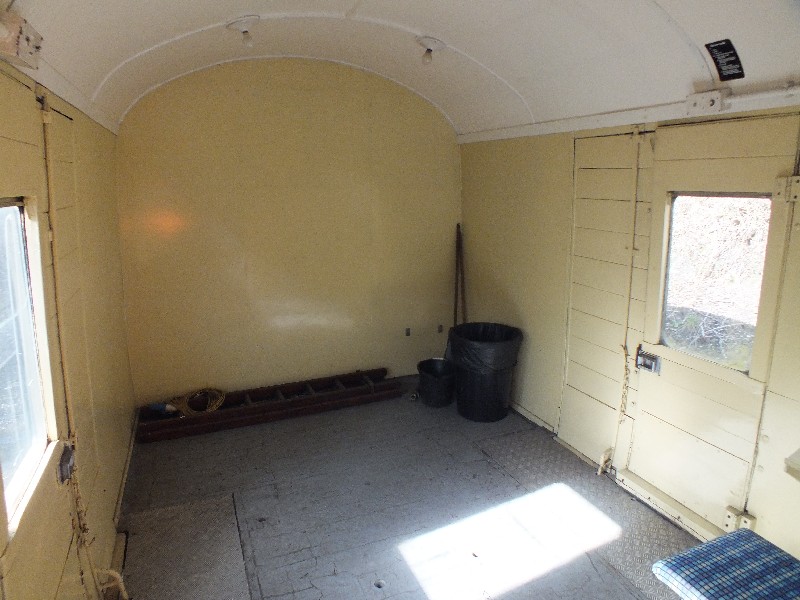

View of the access into the guard's compartment, 28/3/09. Chris Moxon
